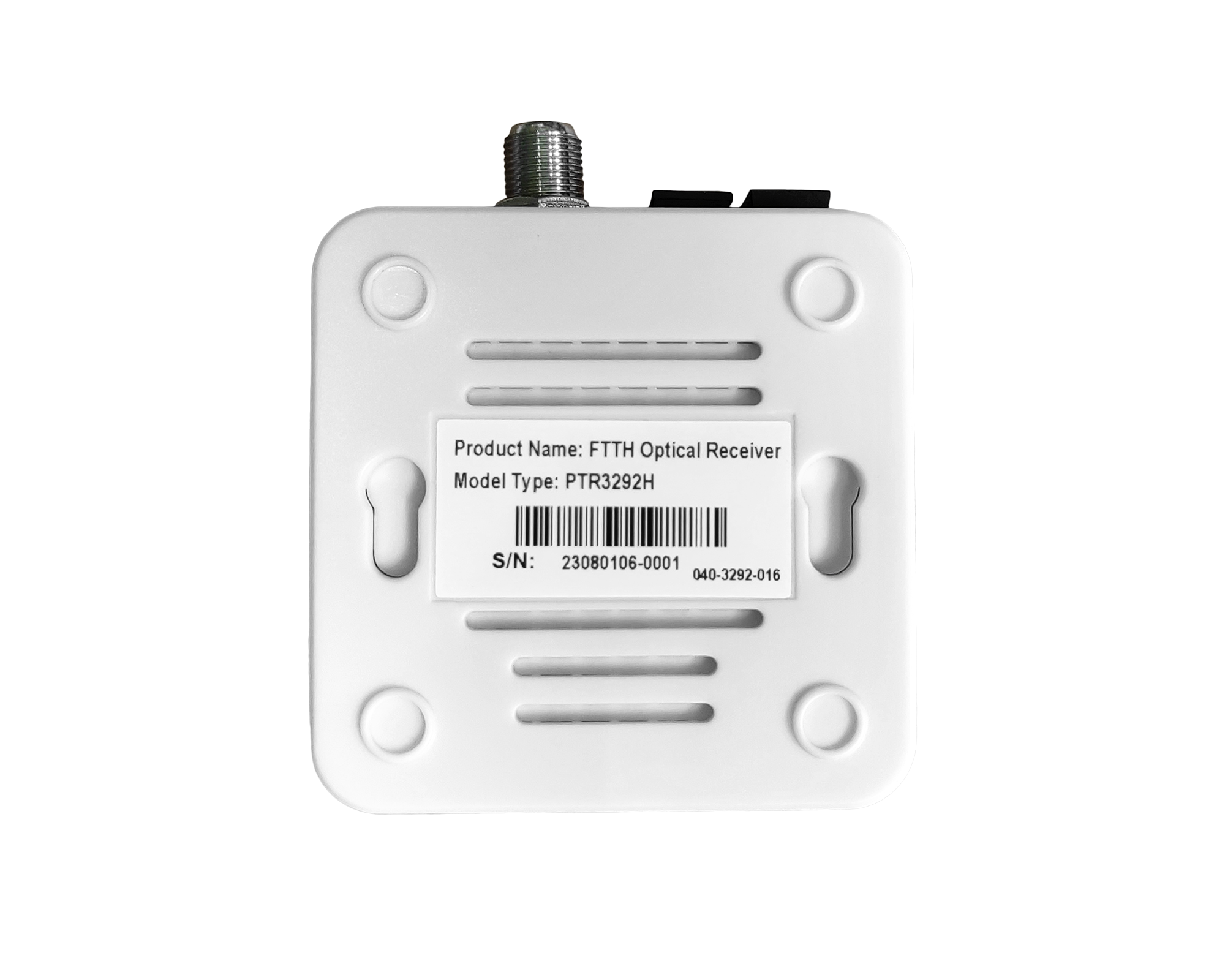

WDM passive mini node---PTR3292H
Dimension:75mmx55mmx28mm(LxHxM) Weight:0.1kg
Features
Specification
Application
Video

WDM passive mini node

PTR3292H

1. Description

PTR3292H CATV Passive optical receiver is designed for digital TV fiber to the home. It adopts high sensitivity optical receiver tube, no power supply, no power consumption. When input optical power Pin=0dBm, output level Vo=60dBμV. It can be economically and flexibly used in the application of fiber to the home. Built-in WDM, CATV bandwidth 1550±20nm.


Block Diagram

2. Features

■No power supply, no power consumption

■45~1050MHz Bandwidth

■output level=60dBμV (Pin=0dBm)

Description

value

Notes

Optical Characteristics

wavelength

(nm)

1540~1563

CATV

1550/1490/1310

Com port

1490/1310

For ONT

Response

(A/W)

≥0.85

1310nm

≥0.9

1550nm

Optical Power Input Range

(dBm)

+2~-9

Optical Return loss

(dB)

≥55

connector

SC/APC

RF Characteristics

Bandwidth

(MHz)

45 ~ 1050

output level

(dBμV)

>60±2

Digital Tv(Pin=0dBm)

output impendence

(Ω)

75

Output port

1

RF connector

F connector

imperial

Digital TV link Characteristics

OMI

(%)

4.3

MER

(dB)

≥33

Pin= -5dBm

BER

(dB)

<1.0E-9

Pin= -5dBm

Physical Characteristics

Operating Temperature

(℃)

-20 ~ +50

Storage Temperature

(℃)

-40 ~ 85

Working Humidity

(%)

5 ~ 95

Dimensions

nm

65X 74X 26
