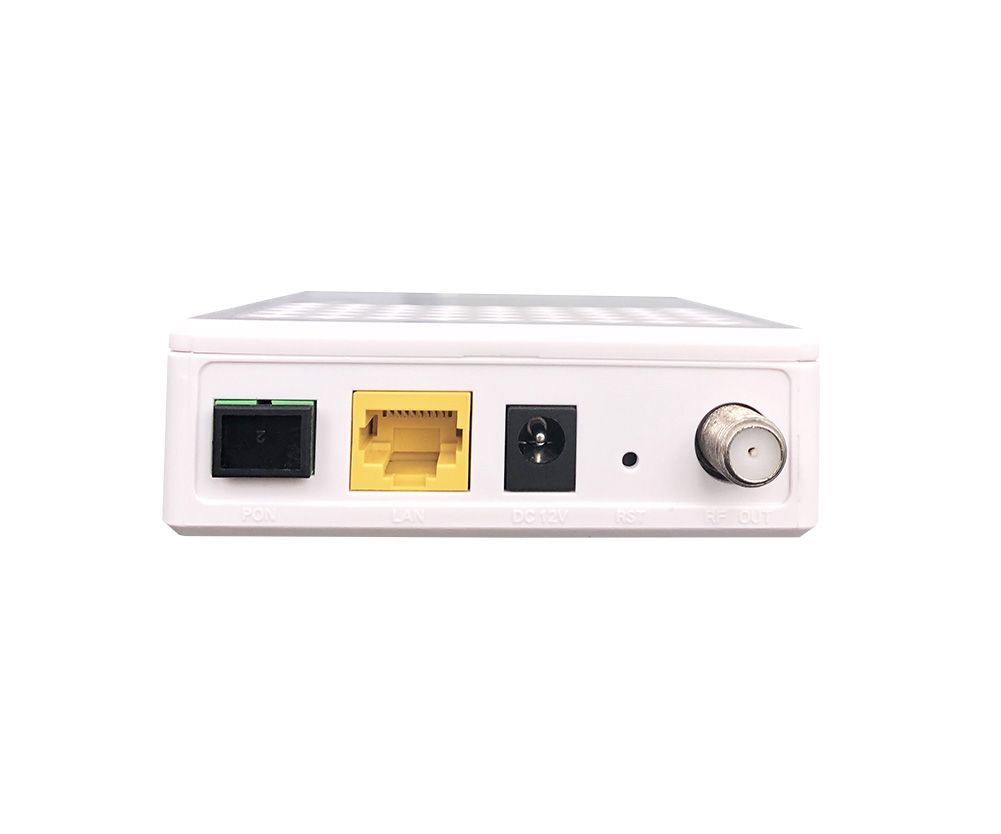

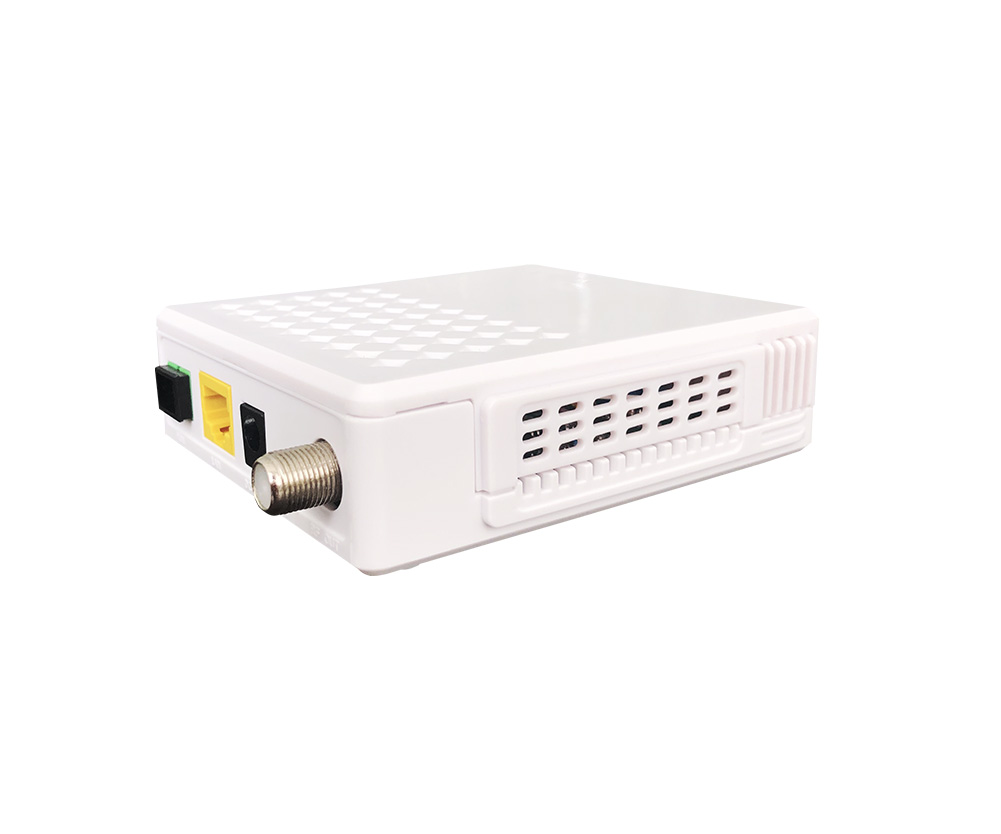

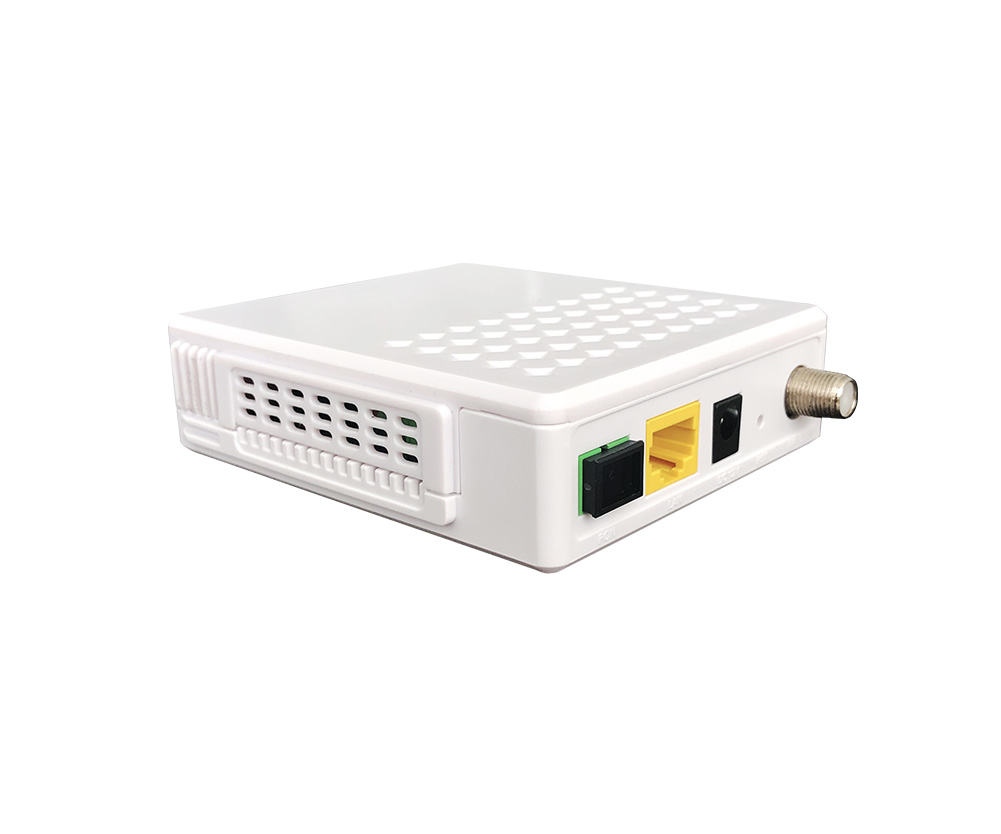

1GE+CATV EPON HGU ONU
PTF1331
Product Description：
FIBERWAY PTF1331 is 1GE+CATV HGU EPON ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
Small size ONU can also be applied to a wide temperature environment, and also has a firewall function.
Features：
Ø Integrated CATV receiver, RF Bandwidth (MHz):45~1000, AGC Dynamic Range(dBm):-15~+0, output level:76±2dBuV
Ø HGU ONU, bridging and routing modes can be set
Ø Compatible with popular EPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)
Ø Support Telnet, CLI, OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
|
Description |
Unit |
Value |
Conditions / Notes |
|
PON |
|||
|
PON standard. |
|
EPON IEEE802.3ah |
|
|
Optical interface |
|
SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM |
|
|
Speed |
Gbps |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; GEPON: symmetric 1.25Gbps |
|
|
Wavelength |
nm |
Tx1310, Rx 1490, CATV 1550 |
|
|
Interface |
data |
1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
|
Electrical Specifications |
|||
|
Optical Connector Type |
|
SC/APC |
|
|
Input optical power range |
dBm |
-18~ +2 |
|
|
Optical return loss |
dB |
≥45 |
|
|
Wavelength |
nm |
1550 ±10 |
|
|
RF Output Connector |
F |
Imperial or metric RF female connector |
|
|
RF Bandwidth |
MHz |
47～1000 |
|
|
Slope |
dB |
0~2 (47～1003MHz) |
|
|
RF impedance |
Ω |
75 |
|
|
RF output return loss |
dB |
≥14 dB |
|
|
RF output lever |
dBuV |
76±2（@-15~0dBm） |
|
|
AGC Range |
dBm |
0 ~ -15 |
|
|
C/N |
dB |
≥47 @-7dBm |
|
|
CTB |
dB |
≥60 @-7dBm |
|
|
CSO |
dB |
≥60 @-7dBm |
|
|
MER |
dB |
≥35 @-10dBm |
|
|
Environmental Specifications |
|||
|
Indicator |
LED |
PWR, LOS, PON, LAN, CATV |
|
|
Operating condition |
℃ |
Operating temperature: -5 ~ +55 |
|
|
Storing condition |
℃ |
Storing temperature: -30 ~ +60 |
|
|
Humidity |
% |
10~90(non-condensing) |
|
|
Power supply |
V |
DC 12V,0.5A adapter |
|
|
Power consumption |
W |
≤5 |
|
|
Mechanical Specifications |
|||
|
Dimension (LxWxH) |
mm |
111×92×30（L×W×H） |
|
|
Weight |
kg |
Net weight 0.13 |
|
Shipping packaging
| Description | Quantity | Weight | Carton Size |
| Shipping packaging | 1pc/box | 0.24kg/box | 120*110*65mm |
| 100pc/ctn | 24.5kg/ctn | 640*570*280mm |
