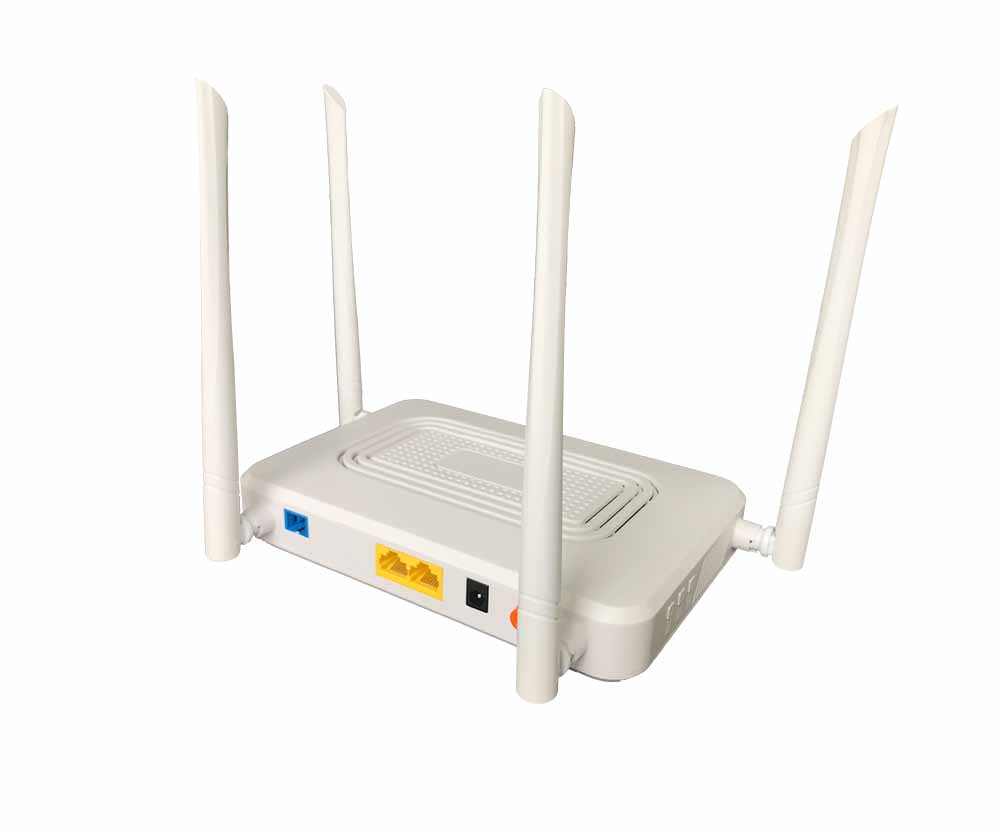

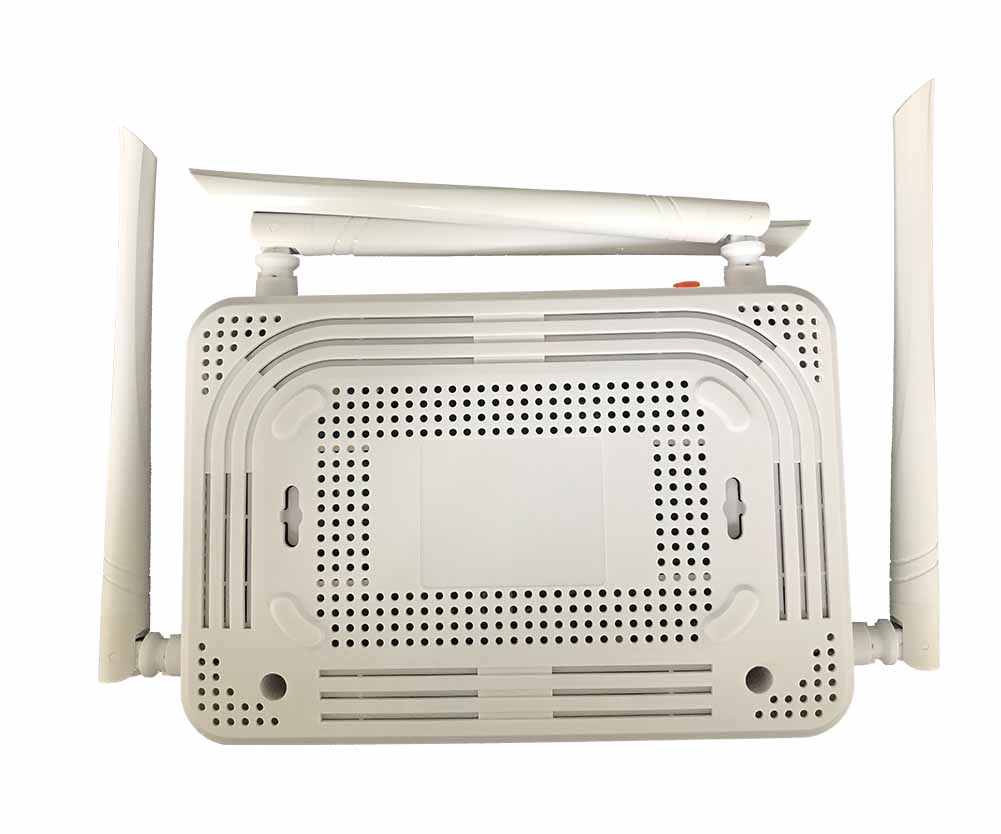

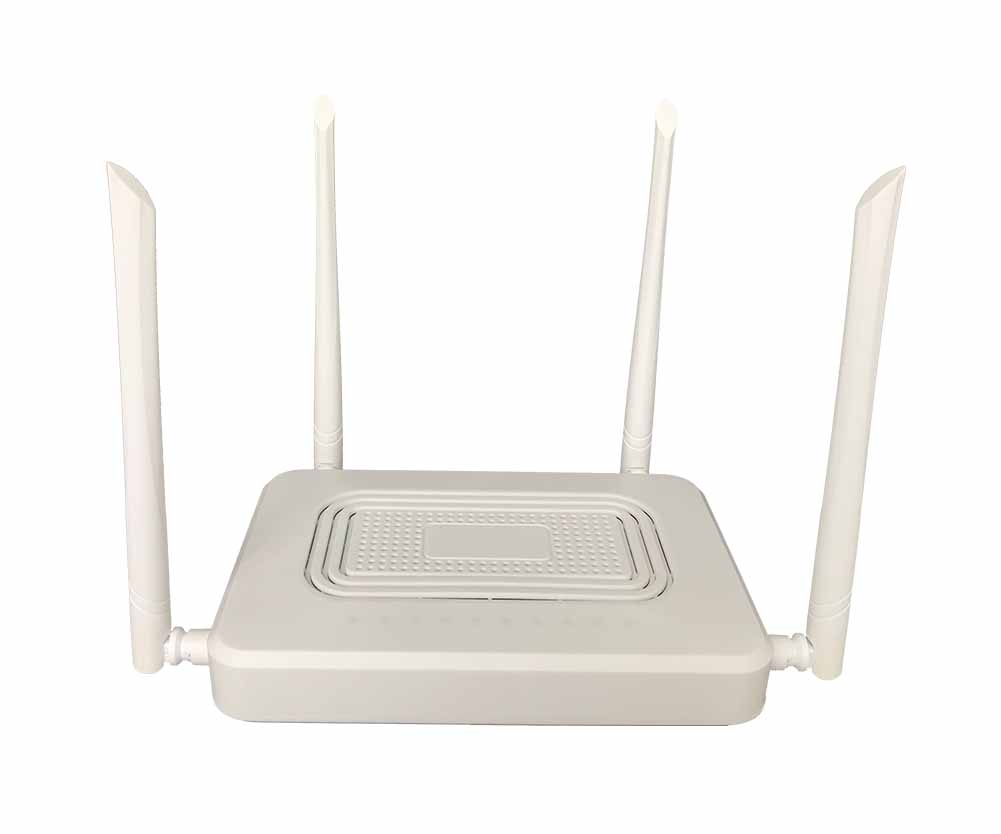

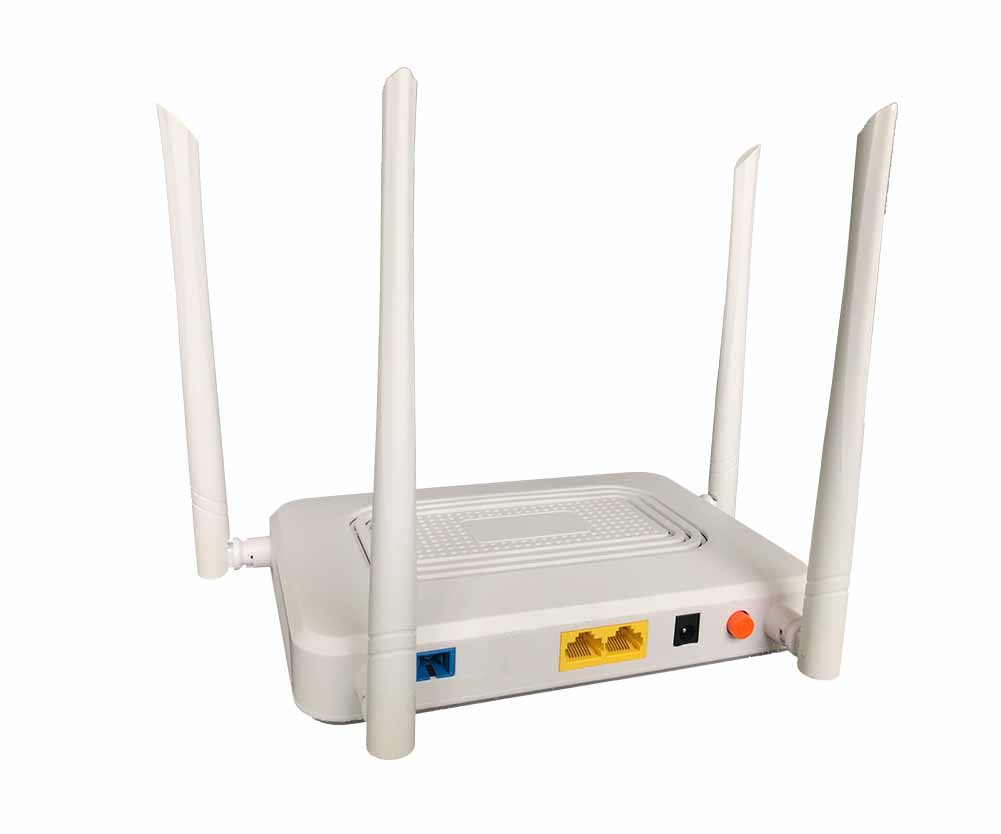

2GE+WIFI (4T4R) HGU EPON ONU
PTF1252Q
Product Description:
FIBERWAY PTF1252Q is 2GE+WiFi (4T4R) EPON HGU ONU. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi. It can meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. . It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
It can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON
Ø Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11a/b/g/n/ac WiFi(4T4R), rate up to 1.167Gbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK
Ø Support Telnet, CLI, OMCI/OAM /TR069 and Web management
Ø Support NAT, Firewall function
Support remote software upgrade
|
Items |
Unit |
Specifications |
|
PON standard. |
|
EPON IEEE802.3ah |
|
Optical interface |
|
SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Speed |
Gbps |
EPON: symmetric 1.25Gbps. |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Interface |
data |
2GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Wireless |
Compliant with IEEE802.11 a/b/g/n/ac WiFi, 4T4R external antenna, 2.4GHz Operating frequency: 2.400-2.483GHz5.0GHz Operating frequency: 5.150-5.825GHzSupport MIMO, rate up to 1.167Gbps |
|
|
Indicator |
LED |
POWER, LOS, PON, WAN, LAN1, LAN2, 2.4G, 5G |
|
Operating condition |
℃ |
Operating temp: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temp: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V,1.0A adapter |
|
Power consumption |
W |
≤10 |
|
Dimension |
mm |
242mm×154mm×35mm(L×W×H) |
|
Net weight |
Kg |
0.28 |
