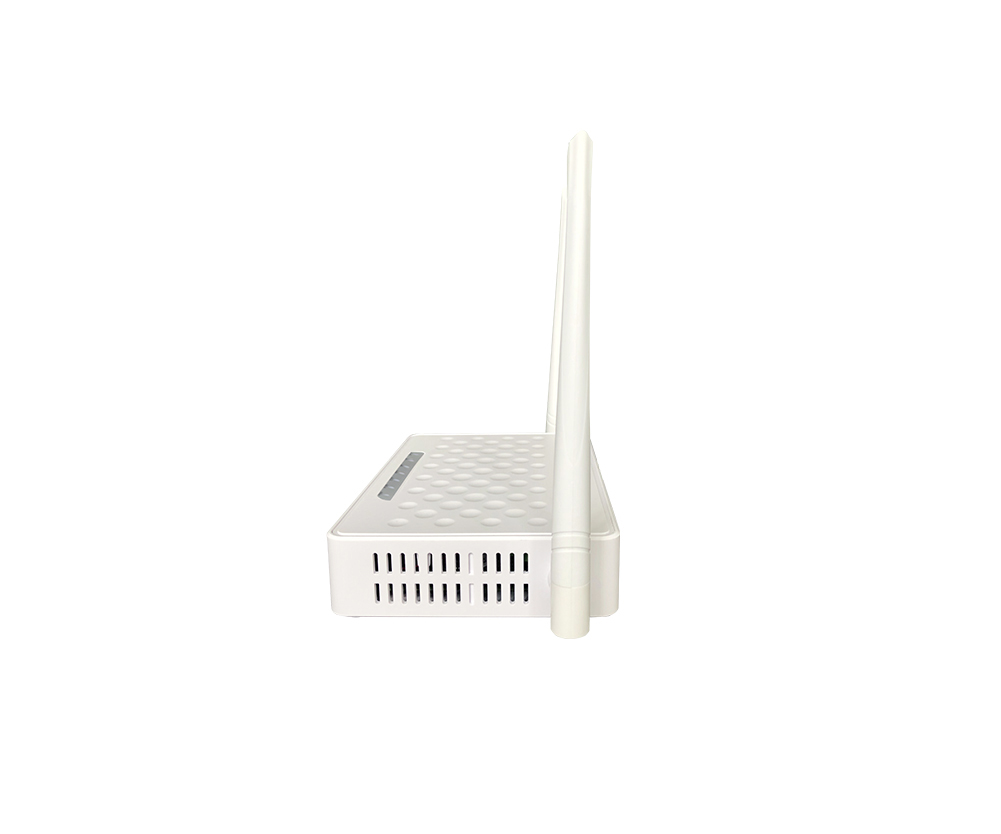

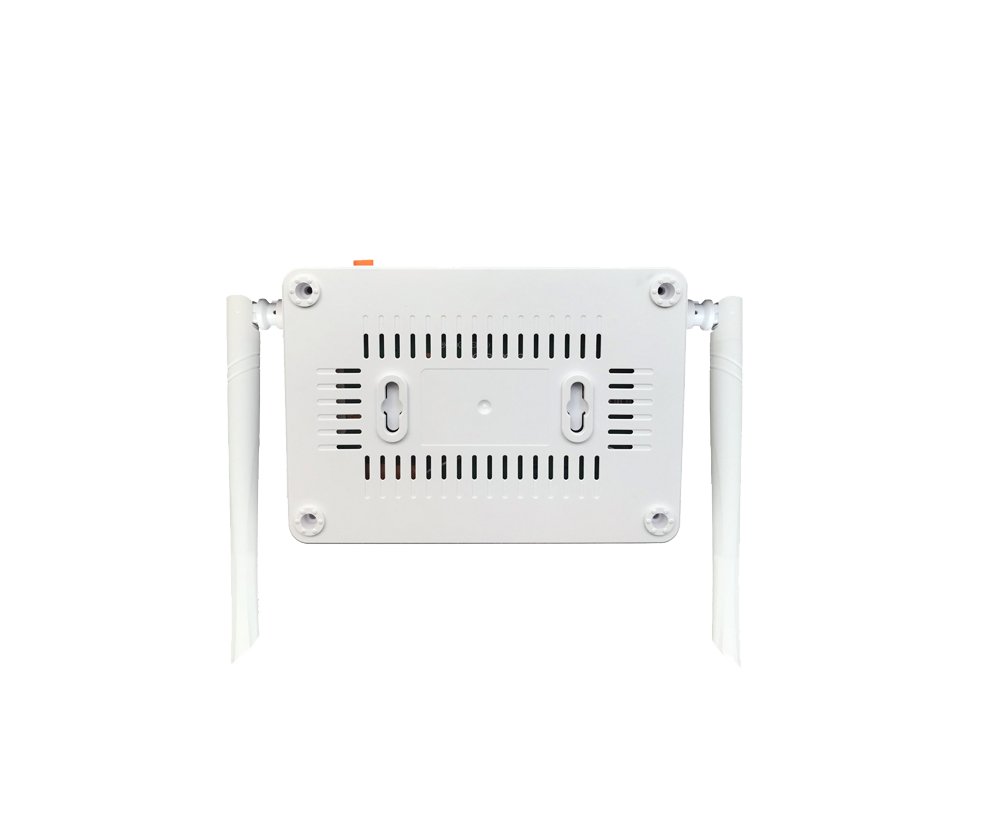

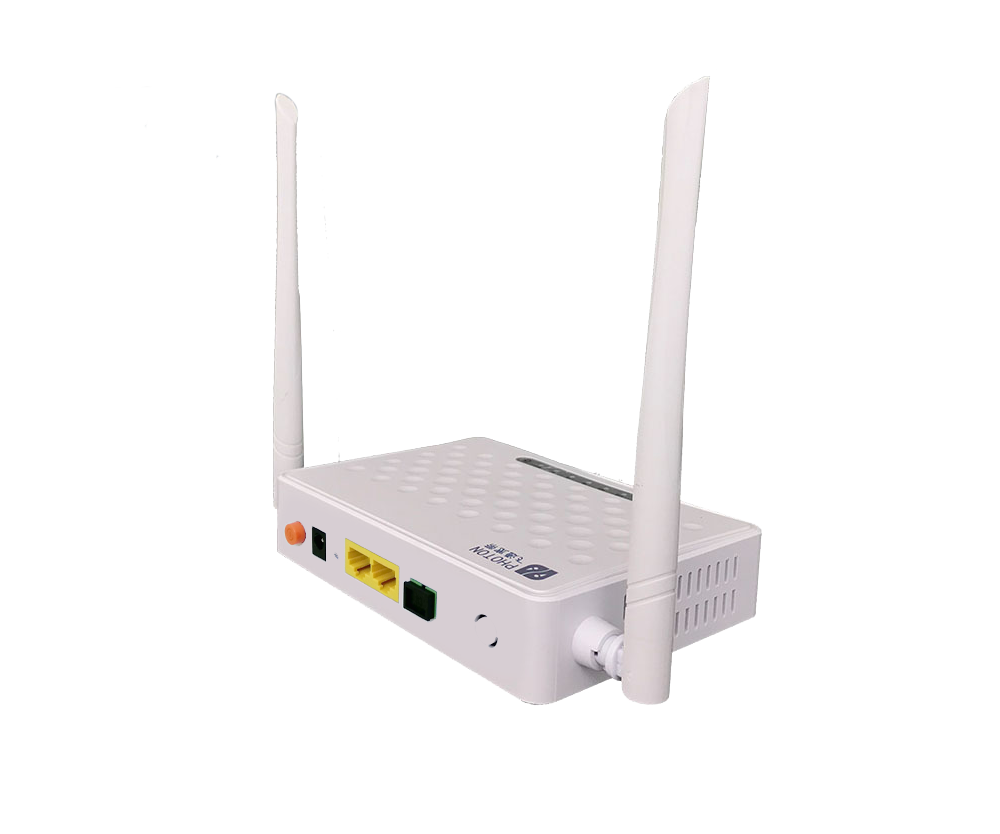

1GE + 1FE + WIFI HGU XPON ONU
PTF1202W
Product Description:
FIBERWAY PTF1202W is 1GE+1FE+WiFi EPON HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
It can also be applied to a wide temperature environment, and also has a powerful firewall function.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11n 2T2R speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
| Items | Unit | Specifications |
| PON standard |
|
EPON IEEE802.3ah |
| Optical interface |
|
SC/PC connector,1 EPON interface(EPON PX20+ )Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
| Speed | Gbps | EPON: symmetric 1.25Gbps |
| Wavelength | nm | Tx1310, Rx 1490 |
| Interface | data | 1FE 10/100Mbps1GE 10/100/1000MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| Wireless | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna | |
| Indicator | LED | PWR, PON, LOS, WiFi, GE, FE |
| Operating condition | ℃ | Operating temp: -5 ~ +55 |
| Storing condition | ℃ | Storing temp: -30 ~ +60 |
| Humidity | % | 10~90(non-condensing) |
| Power supply | V | DC 12V, 1A adapter |
| Power consumption | W | ≤6 |
| Dimension | mm | 210mm×110mm×33mm(L×W×H) |
| Net weight | Kg | 0.24 |
