Dimension(mm)：200mm×156.8mm×32.33mm(L×W×H)
Weight：0.35kg
2.5GE+3*GE +CATV+Wi-Fi 7 XPON ONU
PTF2854B-H-BE36
Product Description：

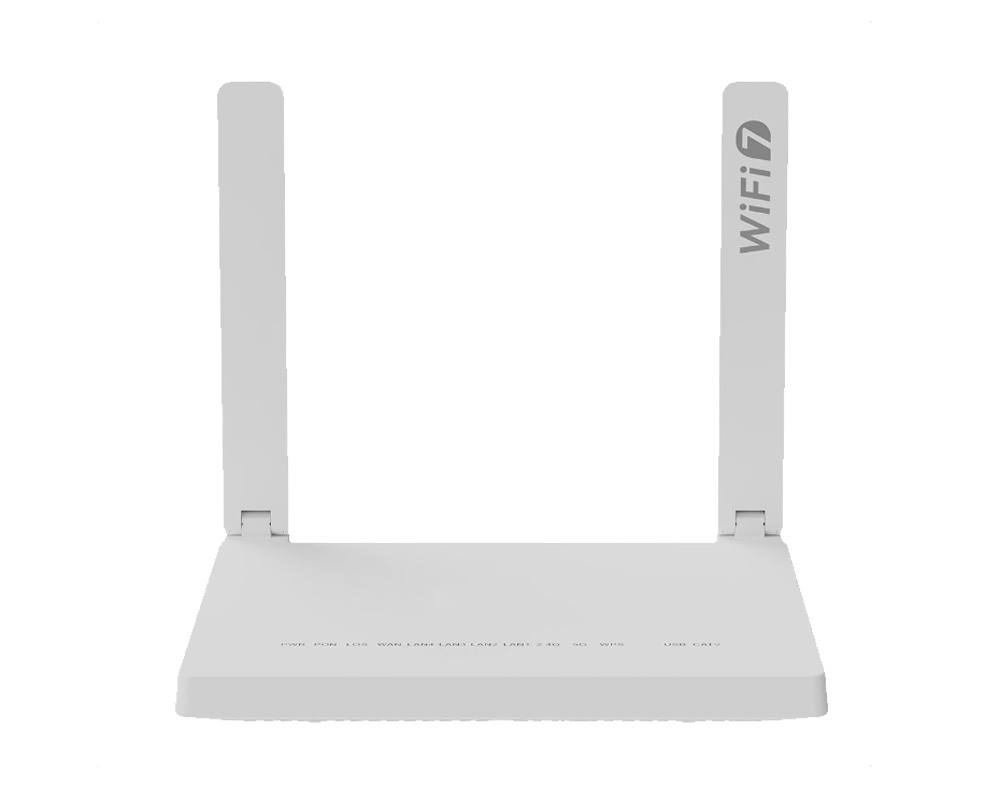

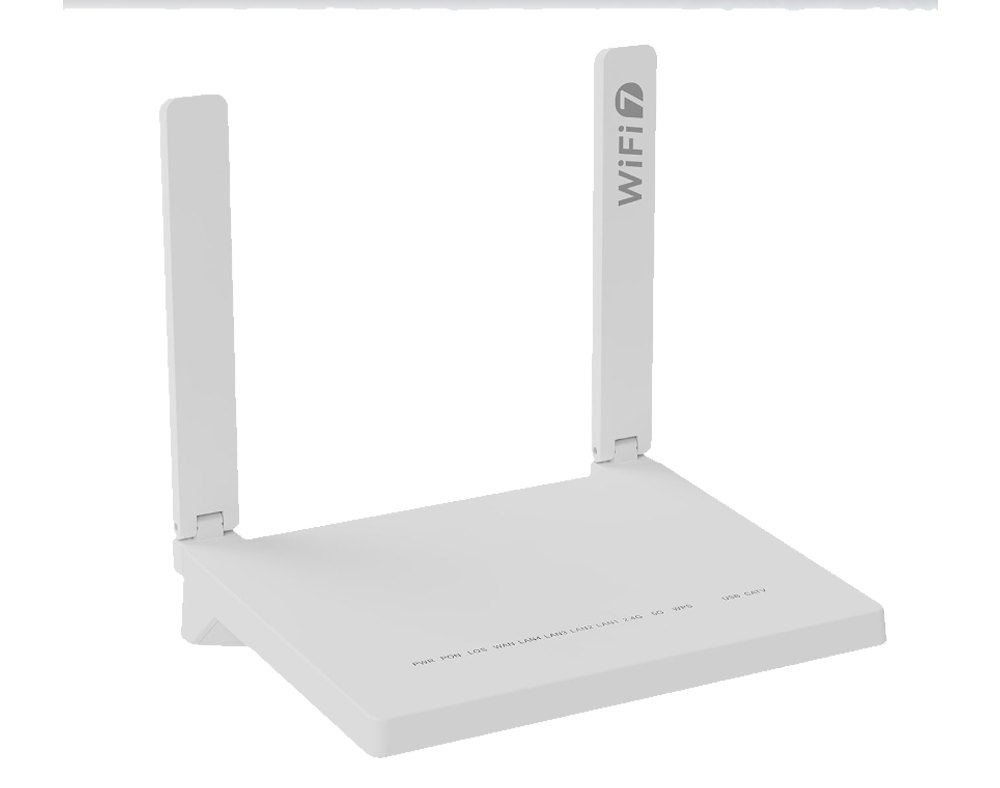

FPTF2854B-H-BE36 (1*2.5GE+3*GE+CATV+1*USB 2.0+Wi-Fi 7 XPON HGU ONT) is a broadband access device designed to meet the demands of fixed network operators for FTTH and triple-play services. This ONT is based on a high-performance chip solution, supporting XPON dual-mode technology (EPON and GPON). With WiFi speeds of up to 3600Mbps, it also supports IEEE 802.11a/b/g/n/ac/ax/be WiFi 7 technology and other Layer 2/Layer 3 features, providing data services for carrier-grade FTTH applications. In addition, this ONT supports OAM/OMCI protocols, allowing configuration and management of various services on the Photon OLT, making it easy to manage and maintain, and ensuring QoS for various services. It complies with international technical standards such as IEEE802.3ah and ITU-T G.984. The PTF2854B-H-BE36 features 180° foldable antennas. With a bottom disc fiber structure design, it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles!
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø High Performance Chip Solution
Ø Next-Gen Gigabit WiFi 7(BE3600) technology
Ø 2.4GHz & 5GHz Dual Band Speed up to 3.6Gbps
Ø Tray-mounted Fiber Structure
Ø Triple-play Services
|
Description |
Unit |
Value |
Conditions / Notes |
|
PON |
|||
|
PON standard |
|
EPON IEEE802.3ah, GPON ITU-T G.984.x |
|
|
Optical interface |
|
1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
|
|
Wavelength |
nm |
TX 1310nm, RX1490nm |
|
|
Interface |
|
1*XPON+1*2.5GE+3*GE+CATV+1*USB2.0+Wi-Fi 7 |
|
|
User interface |
|
1×2.5GE+3×GE, Auto-negotiation,RJ45 ports 1*USB3.0 |
|
|
Antenna |
|
2.4GHz\5GHz 2T2R, external antennas |
|
|
USB |
|
1×USB 2.0 for Shared Storage/Printer |
|
|
Indicators |
|
PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G , WPS ,USB |
|
|
Function Data |
|||
|
Management |
|
WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol |
|
|
Internet connection |
|
Support routing mode Support bridge mode |
|
|
Firewall |
|
Anti-DDOS, ACL with URL, MAC, and IP-based filtering |
|
|
Multicast |
|
IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
|
|
CATV |
|
Optical receiving wavelength: 1550±10nm Optical input range: +2～-18dBm Optical reflection loss: ≥40dB RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1～-10dBm ≥79±2dBuv@ 0～-11dBm ≥77±2dBuv@-1～-12dBm ≥75±2dBuv@-2～-13dBm ≥73±2dBuv@-3～-14dBm ≥71±2dBuv@-4～-15dBm MER: ≥32dB(-14dBm optical input) |
|
|
WIFI |
|
Wi-Fi 7: 802.11a/n/ac/ax/be 5GHz, 2.4GHz WiFi: 2.4GHz\5GHz 2×2, dual band antennas, rate up to 3.6Gbps,Multiple SSID WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 4096-QAM Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band Easy-Mesh R5 |
|
|
Antenna |
|
2.4GHz\5GHz 2T2R, external antennas |
|
|
L2 |
|
802.1p Cos,802.1Q VLAN |
|
|
L3 |
|
IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS,Parental Control |
|
|
Firewall |
|
Anti-DDOS, Filtering Based on ACL/MAC /URL |
|
|
Environmental Specifications |
|||
|
Operating condition |
℃ |
Operating temp: -10~ +55°C Operating humidity: 5~90% (non-condensed) |
|
|
Storing condition |
℃ |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
|
|
Power supply |
V |
DC 12V/1.0A |
|
|
Power consumption |
W |
≤13W |
|
|
Mechanical Specifications |
|||
|
Dimension |
mm |
200mm×156.8mm×32.33mm(L×W×H) |
|
|
Weight |
kg |
0.35 |
|
