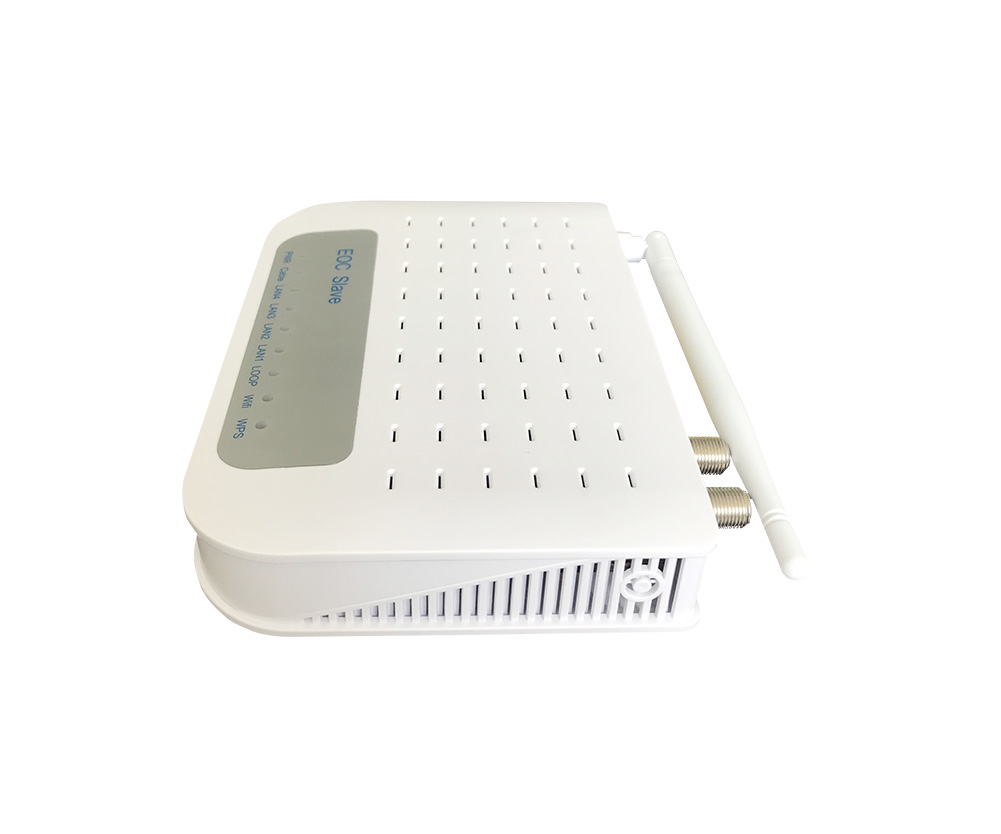

PTC1000-W1704
Description：
PTC1000-W1704 adopts Athros chipset solution with 4FE ethernet ports and WiFidevice. It has high speed internet access and interactive TV on one cable for user. Four LEDs indicate link working status.
Data Features：
§ Compliant with HomePlug AV, IEEE 802.1q , IEEE 802.3, IEEE 802.3x/u
§ Support concentrated network platform of SNMP, remote management support
§ Port rate and MAC Address number limitation
§ TV Band 87MHz-860MHz, Date Band 7.5MHz-65MHz
§ Strengthened anti-jamming capability with OFDM (Orthogonal Frequency Division Multiplexing) and FEC (Forward Error Correction) technology
§ Supporting auto-configuration and manual configuration
§ High security and isolated between terminal equipments
§ doesn't destroy house or office original decoration
§ Remote Firmware Update of the EoC terminal
§ Higher sensitivity of RF receiver

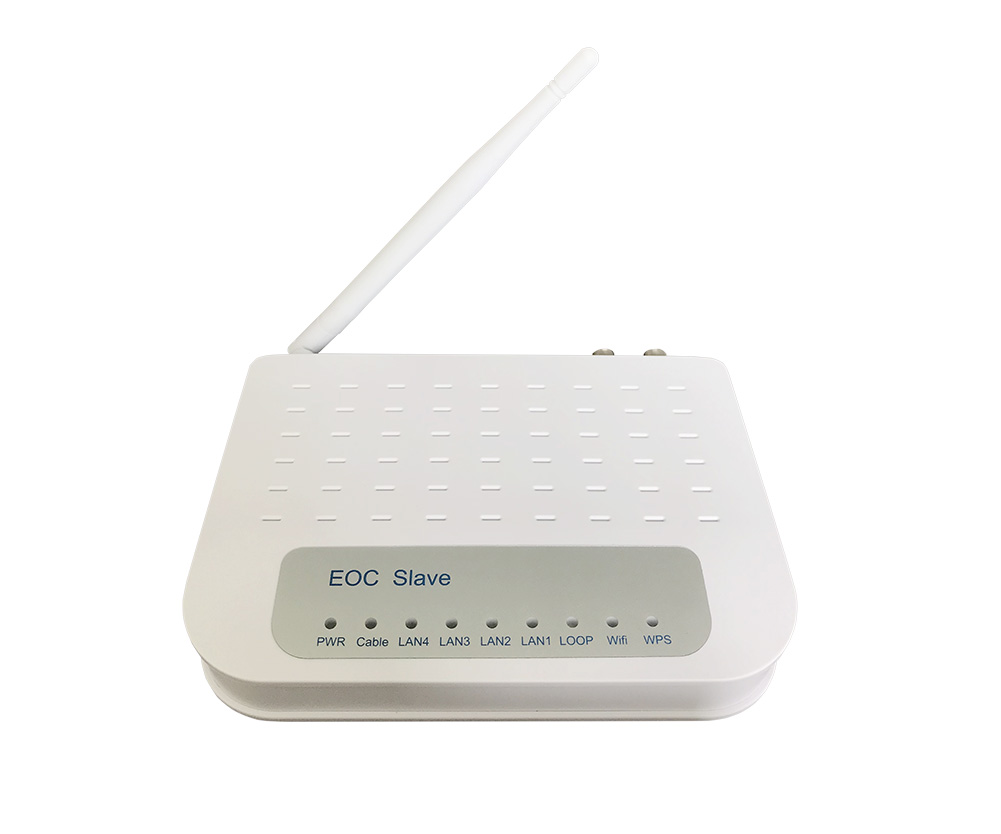

§ LED indicate link working status
§ Using existing coaxial and
§ Lower power Consumption
Wifi Feachurs：
§ IEEE 802.11n and 802.11b/g compliant
§ Up to 150Mbps in wireless N mode Wireless
§ Includes Advanced Encryption Standard (AES)
§ Surports IEEE 802.11g, 802.11b, 802.11i, 802.1X, 802.3, 802.3u, 802.3X,802.11n standards .
§ Support 1-13 wireless channel
§ Wireless security :WEP,WPA-PSK,WPA2-PSK(AES,TKIP)and 64bit or 128bit WEP support
§ Support Multiple SSID, Hidden SSID and Wifi Protocol Setup (WPS)
|
Parameter |
Units |
Specifications |
||
|

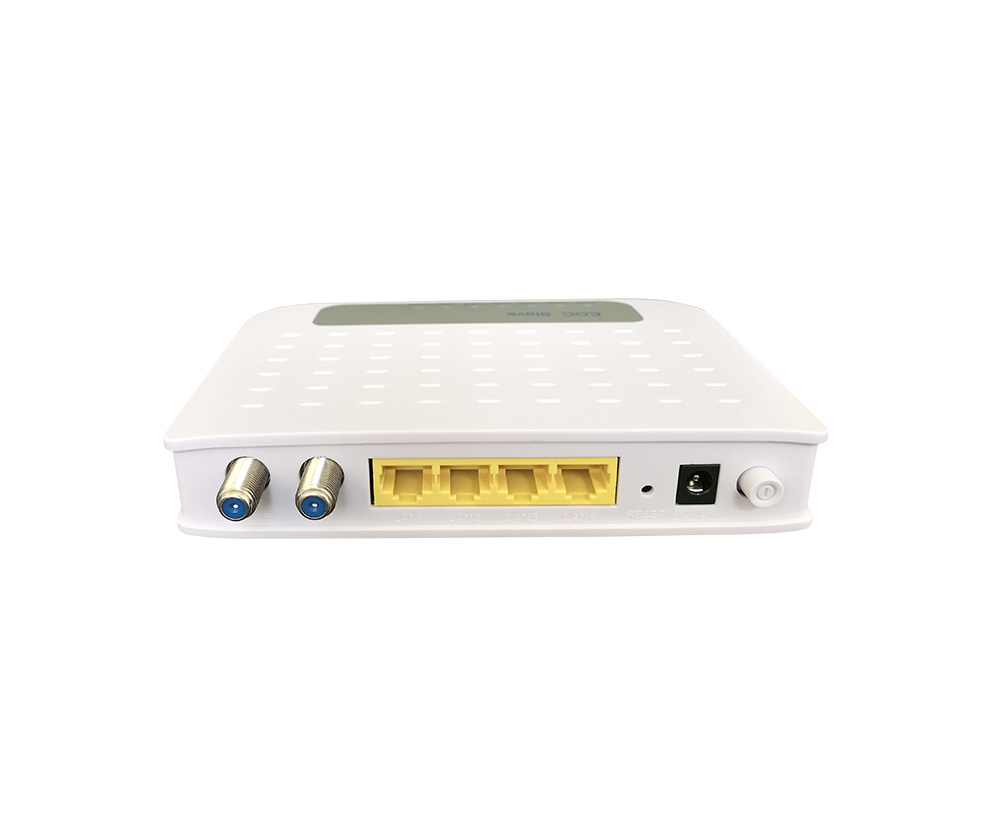

Interface |
||||
|
PTC1000-W1704 |
||||
|
standard Ethernet interface |
PCS |
4 |
||
|
RF interface |
PCS |
1 |
||
|
Data RF output |
PCS |
1 |
||
|
power input port |
PCS |
1 |
||
|
Bandwidth |
||||
|
Physics Bandwidth |
500Mbps. |
|||
|
MAC Bandwidth |
350Mbps |
|||
|
Light Indicator |
||||
|
Light Indicator |
Link (Cable port) |
|||
|
ETH (Ethernet port) |
||||
|
Power |
||||
|
Others |
||||
|
WiFi speed |
Mbps |
150Mbps |
||
|
WiFi Frequency Range |
GHz |
2.4GHz |
||
|
RF Connector |
F-type Female socket, metric |
|||
|
RF Output Impedance |
Ω |
75Ω |
||
|
Power |
V |
External power DC12V 500mA |
||
|
Power Consumption |
W |
<5W |
||
|
RF Channel Frequency |
7.5 ~65MHz |
|||
|
RF Output Power |
dBuv |
100-120dBu adjustble |
||
|
RF Receive Sensitivity |
dBM |
-60dBM |
||
|
Distance |
M |
>700M |
||
|
Modulation Mode |
OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK ROB |
|||
|
Standard |
IEEE802.3,IEEE 802.3u,802.1Q,802.1P ,IGM |
|||
|
Modify Reject Protocol |
TDMA and CSMA/CAP |
|||
|
Encryption |
128-bit AES |
|||
|
Dimension |
158mm(L)x134 mm(W)x30 mm(H) |
|||
|
Operating temperature |
℃ |
-30 ~60°C |
||
|
Storage temperature |
℃ |
-30 ~70°C |
||
|
Operating humidity |
RH% |
20% ~85% non-condensing |
||
|
Storage humidity |
RH% |
10% ~90% non-condensing |
||
