PTC1000-N1704
Description:

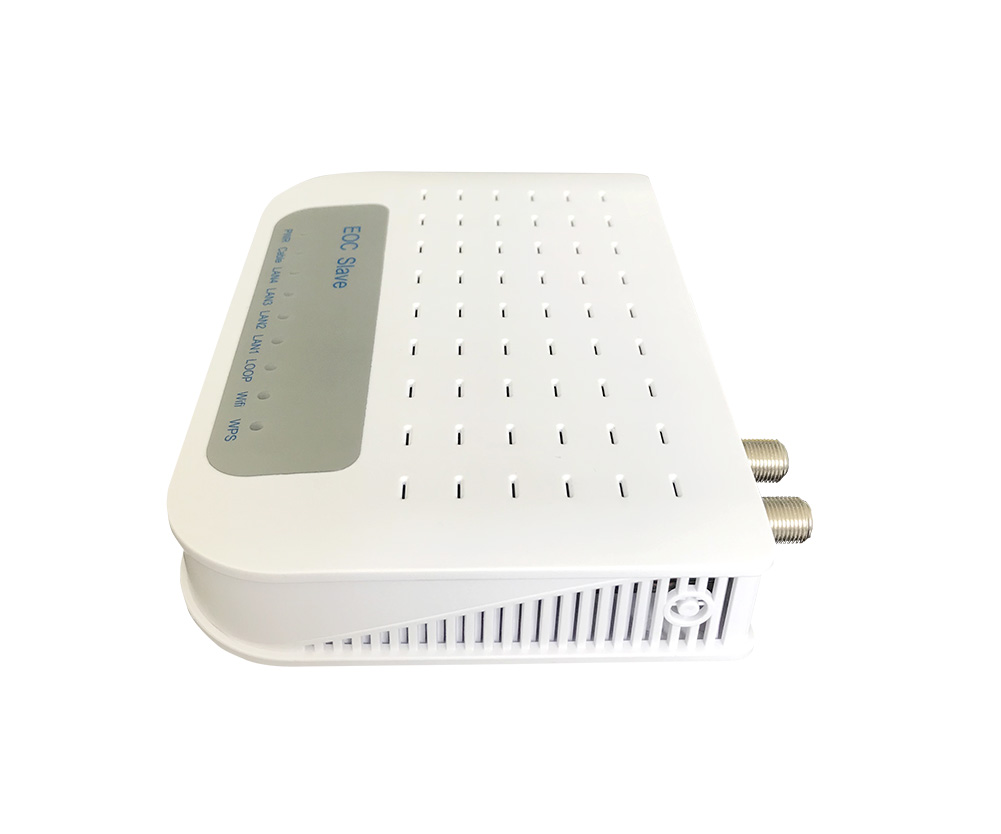

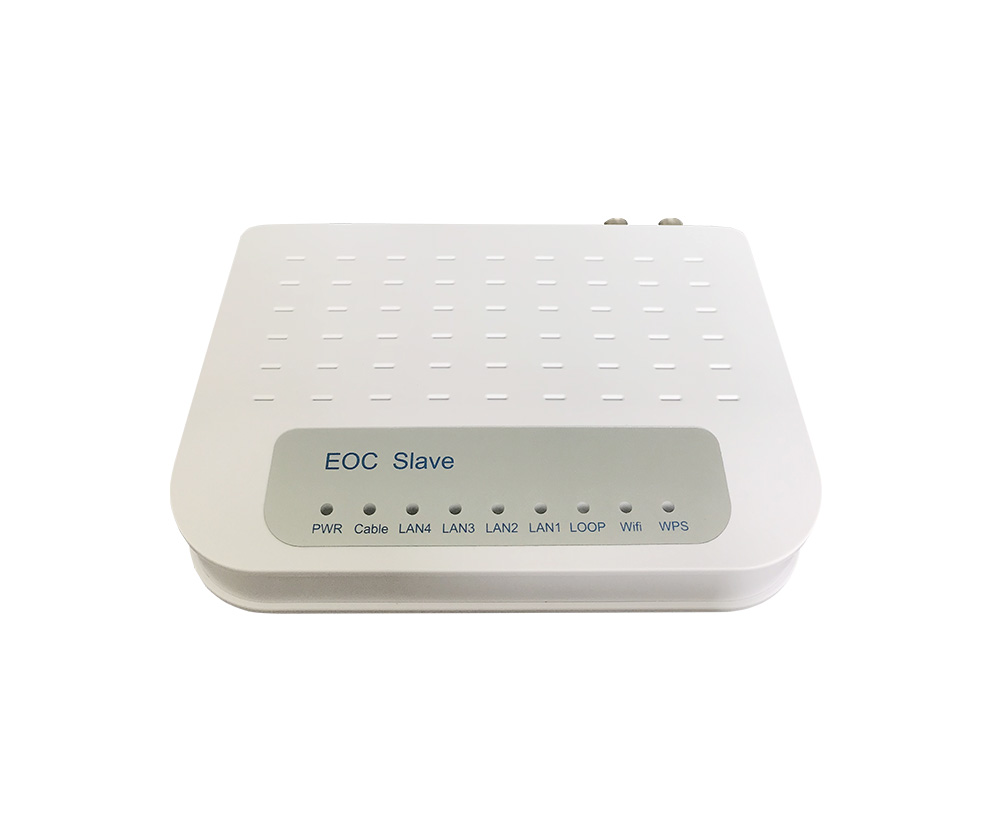

PTC1000-N1704 is a EOC (ethernet over cable) Slave with 4FE ethernet ports.It provides high speed internet access andinteractive TV on one cable for user. Four LEDs indicate link working status.
Features:
♦ Compliantwith HomePlug AV, IEEE 802.1q , IEEE 802.3, IEEE 802.3x/u
♦ Support concentrated network platform of SNMP, remote management support
♦ Port rate and MAC Address number limitation
♦ TV Band 87MHz-860MHz, Date Band 7.5MHz-65MHz
♦ Strengthened anti-jamming capability with OFDM (Orthogonal FrequencyDivision Multiplexing) and FEC (Forward Error Correction) technology
♦ Supporting auto-configuration and manual configuration
♦ High security and isolated between terminal equipments
♦ doesn't destroy house or office original decoration
♦ Remote Firmware Update of the EoC terminal
♦ Higher sensitivity of RF receiver
♦ LED indicate link working status
♦ Using existing coaxial and
♦ Lower power Consumption
|
Parameter |
Units |
Specifications |
|
Interface |
||
|
standard Ethernet interface |
PCS |
4 |
|
RF interface |
PCS |
1 |
|
Data RF output |
PCS |
1 |
|
power input port |
PCS |
1 |
|
Bandwidth |
||
|
Physics Bandwidth |
500Mbps. |
|
|
MAC Bandwidth |
350Mbps |
|
|
Light Indicator |
||
|
Light Indicator |
Link (Cable port) |
|
|
ETH (Ethernet port) |
||
|
Power |
||
|
Others |
||
|
RF Connector |
F-type Female socket, metric |
|
|
RF Output Impedance |
Ω |
75Ω |
|
Power |
V |
External power DC12V 500mA |
|
Power Consumption |
W |
<5W |
|
RF Channel Frequency |
7.5 ~65MHz |
|
|
RF Output Power |
dBuv |
≤120dBu |
|
RF Receive Sensitivity |
dBM |
-60dBM |
|
Distance |
M |
>700M |
|
Modulation Mode |
OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK ROB |
|
|
Standard |
IEEE802.3,IEEE 802.3u,802.1Q,802.1P ,IGM |
|
|
Modify Reject Protocol |
TDMA and CSMA/CAP |
|
|
Encryption |
128-bit AES |
|
|
Dimension |
160mm(L)x115 mm(W)x39 mm(H) |
|
|
Operating temperature |
℃ |
-30 ~60°C |
|
Storage temperature |
℃ |
-30 ~70°C |
|
Operating humidity |
RH% |
20% ~85% non-condensing |
|
Storage humidity |
RH% |
10% ~90% non-condensing |
|
Net weight |
kg |
0.266 |
|
Gross weight |
kg |
0.414 |
