Dimension(mm)：165*135*38(L*W*H)
Weight：0.5kg
One Port GPON OLT
PTF3701R
1. Product Description

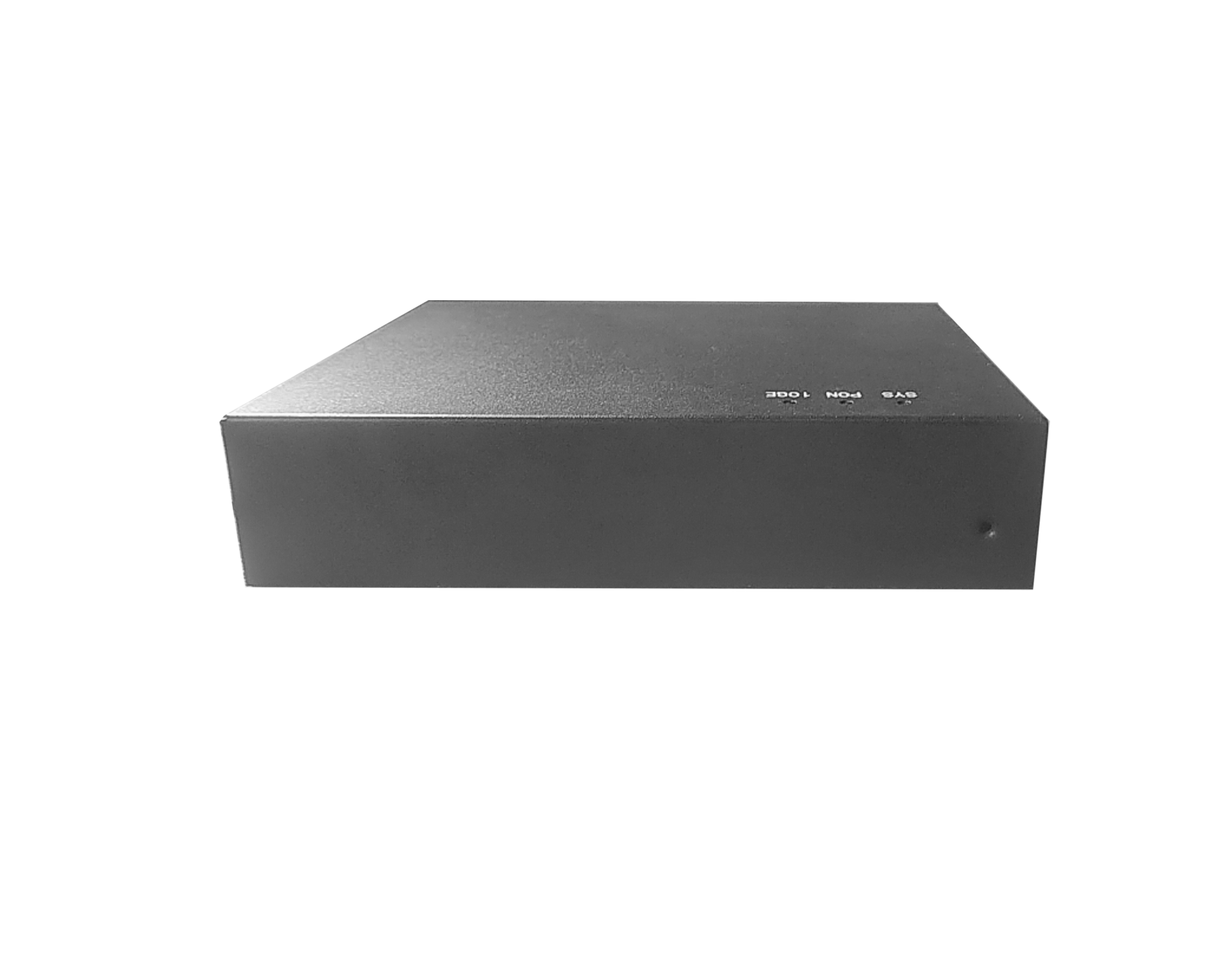

FIBERWAY PTF3701R is Single-PON Port GPON OLT features a compact, portable design suitable for desktop deployment and supports wall-mount installation, effortlessly adapting to diverse scenarios. Combining robust performance with high cost-effectiveness, it serves as an optimal solution for ultra-low-cost deployment.

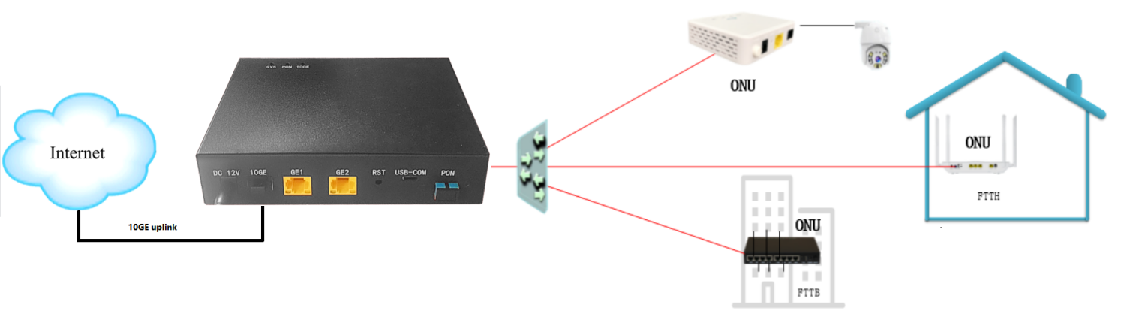

The built-in bottom fiber tray structure not only effectively protects the fiber and enhances operational safety but also simplifies fiber installation and maintenance processes. With a PON port splitter ratio of 1:64, it is suitable for low-density scenarios, offering a maximum transmission distance of 20KM and uplink/downlink bandwidths of up to 1.25Gbps/2.5Gbps. It is widely applicable for FTTX, SOHO, and small business office environments.
2. Features:
Ø 1U 19 inch standard box XG(S)-PON OLT with8 PON ports
Ø High Performance Chipset
Ø 1*10GE(SFP+) and 2*GE Uplink
Ø Built-in PON optic module Flexible and compact
Ø Bottom Fiber Design
Ø Fanless Design
Interface
|
PON interface |
|
1*GPON port(SC/UPC,TX: 8dBm, Sen: -30dBm) Upstream 1.244Gbps, Downstream 2.488Gbps TX optical power: 8dBm RX sensitivity: -30dBm Fiber Type 9/125μm SM Transmission distance: 20KM Max splitting ratio 1:64 |
|
|
Wavelength |
nm |
TX 1310nm, RX1490nm |
|
|
Uplink Port |
|
1*SFP(GE)/SFP+(10GE) |
|
|
|
|
2*RJ45(GE) |
|
|
Management Ports |
|
1*USB-COM(Type-C) port |
|
|
RST Button |
|
Reset |
|
|
Indicators |
LED |
SYS, PON, 10GE，GE |
|
Function Data
|
Management |
|
Telnet,CLI,WEB,SNMP; Port Status monitoring and configuration management Online ONTconfiguration and management User management Alarm management |
|
|
Layer2 Switch |
|
8K Mac address Support 4096 VLANs Support port VLAN Support VLAN tag/Un-tag, VLAN transparent transmission Support VLAN translation、QinQ and P2P Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W Access control list IEEE802.x flowcontrol Port stability statistic and monitoring |
|
|
Layer 3 Route |
|
Support dynamic/static ARP Support WAN (DHCP/PPPOE/Statics) Support static routing, NAT, DMZ Support QoS based on DSCP, MAC, IP, L4 port, protocol, etc. Support ACL based on source MAC address, source IP address, source L4 port, destination IP address, destination L4 port, protocol type, etc. |
|
|
Multicast |
|
IGMP snooping 256 IP Multicast Groups |
|
|
DHCP |
|
Support DHCP server,DHCP relay,DHCP snooping Support DHCP option82 Support DHCPv6 server,DHCPv6 relay |
|
|
IPv6 |
|
Support IPv6 Ping, IPv6 Telnet, IPv6 routing Support ACL based on source MAC address, source IPv6 address, source L4 port, destination IPv6 address, destination L4 port, protocol type, etc Support IPv6 SLAAC Support MLD v1/v2 snooping (Multicast Listener Discovery snooping) |
|
|
GPON Function |
|
Tcont DBA Gemport traffic In compliant with ITU-T984.x standard Up to 20KM transmission Distance Support data encryption, multi-cast, port VLAN, separation, etc Support ONT auto-discovery/link detection/remote upgrade of software Support VLAN division and user separation to avoid broadcast storm Support power-off alarm function, easy for link problem detection Support broadcasting storm resistance function |
|
Parameters
|
Backplane Bandwidth |
Gbps
|
29 |
|
|
Port Forwarding Rate |
Mpps |
21.576 |
|
|
Power Supply |
V |
12V/1A DC Power Adapter |
|
|
Maximum power consumption of the whole machine |
W |
5 |
|
|
Lightning protection level |
|
4KV（Power supply） 1KV（Device Interface） |
|
|
RST Button |
|
Reset |
|
|
Indicators |
LED |
SYS, PON, 10GE，GE |
|
|
Weight |
kg |
0.23 |
|
|
Operating condition |
℃ |
Operating temp: -10 ~ +60°C Operating humidity: 5 ~ 95% (non-condensed) |
|
|
Storing condition |
℃ |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
|
|
Relative Humidity |
|
5~95% (non-condensing) |
|
|
Dimension (LxWxH) |
mm |
165mm*135mm*38mm |
|
