4G Mobile Hotspot CPE
Dimension(mm):98.1*59*15.1(L*W*H)
Weight:85~95g
Features
Specification
Application
Video

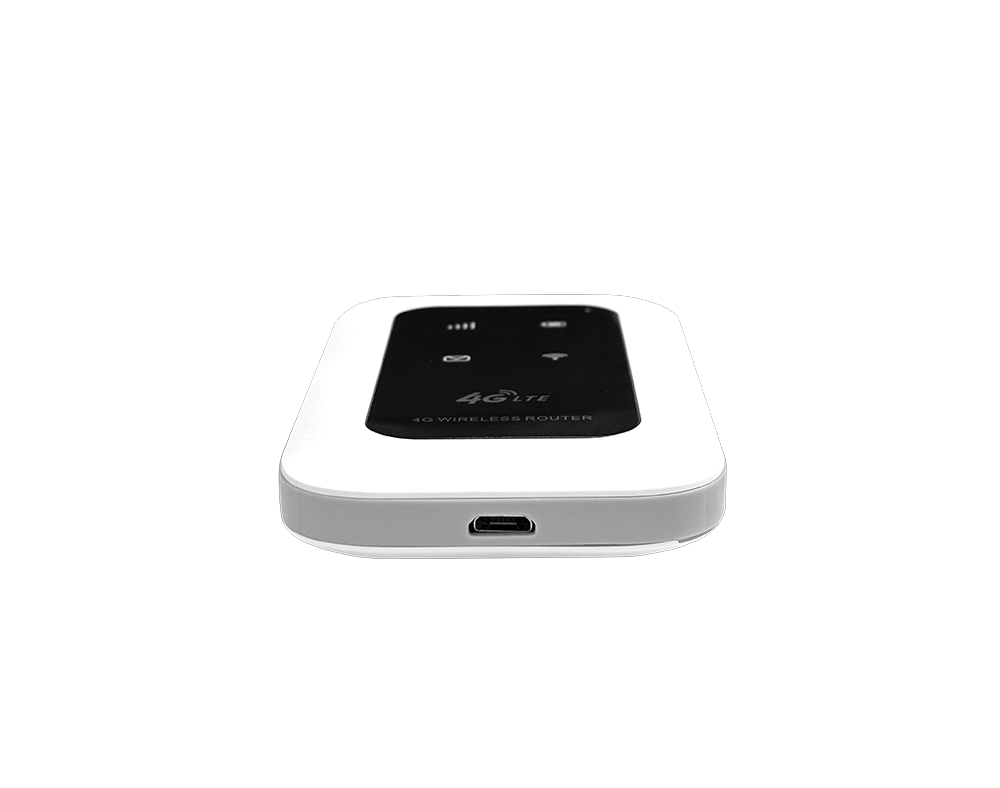

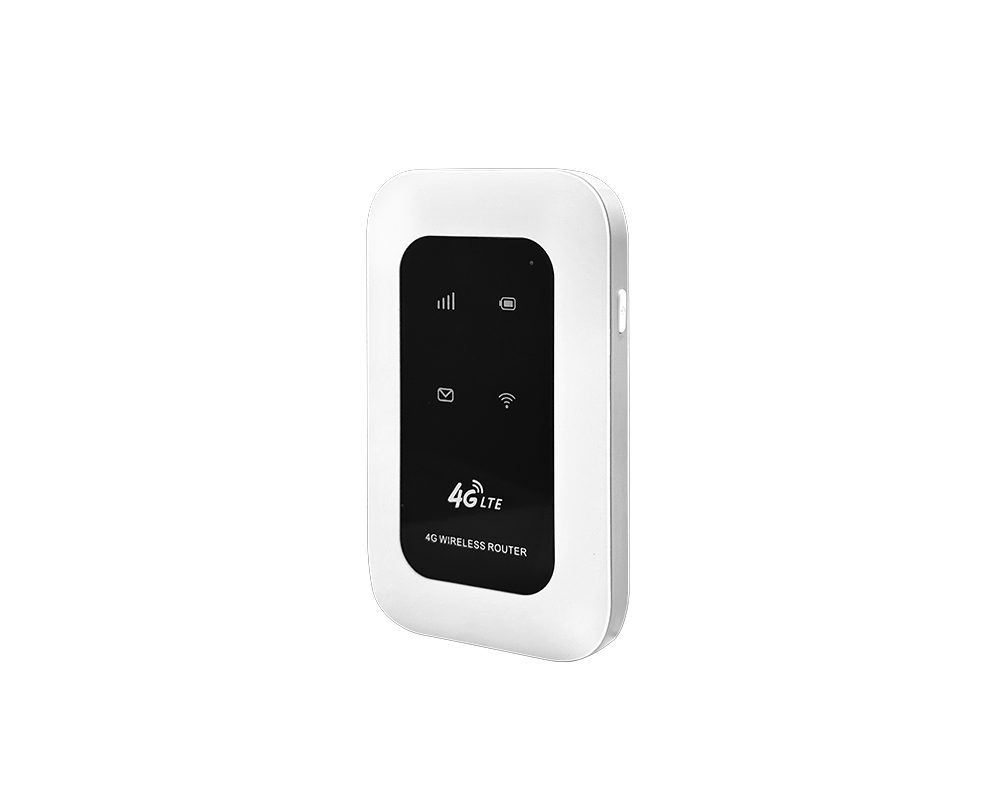

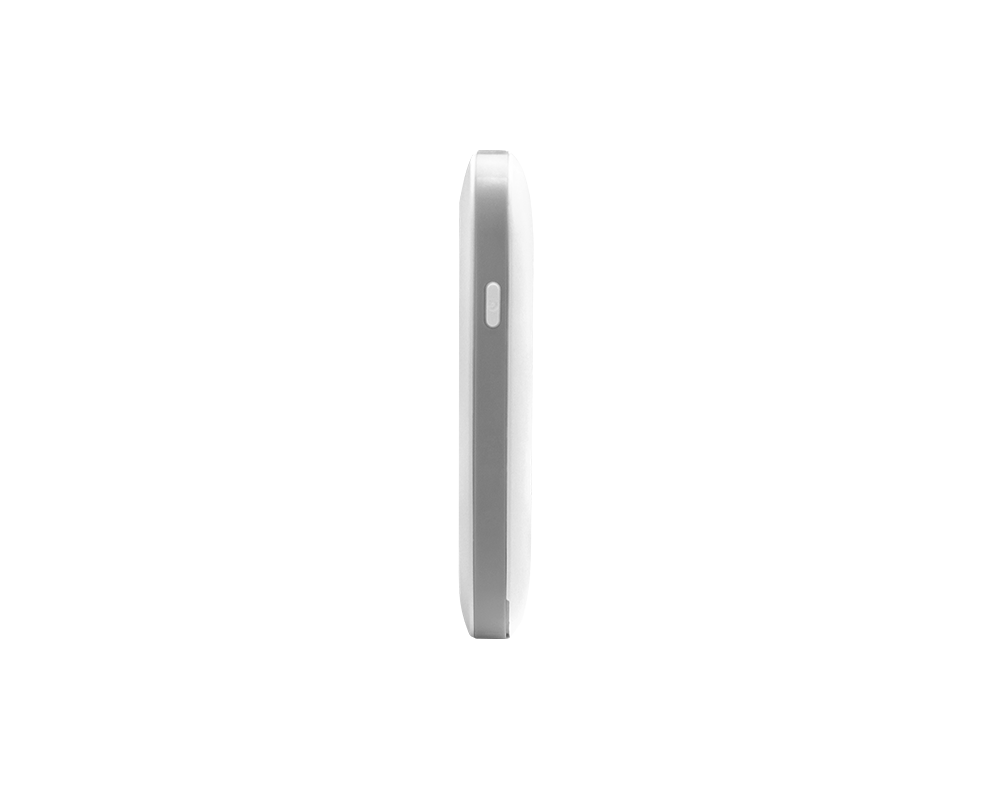

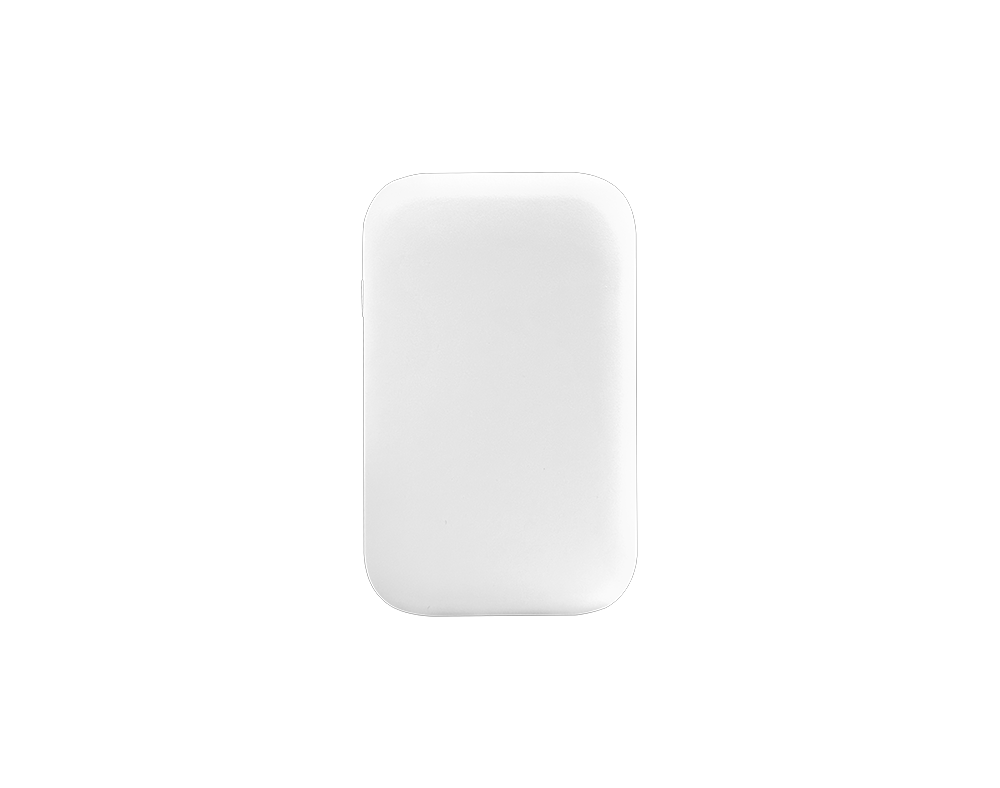

4G Mobile Hotspot CPE

PTW4101


Product Description:

PTW4101 4G Mobile Hotspot CPE is a high performance LTE Mobile WIFI device, with supporting all AP (Access Point) functions. Wherever in office, at home, during travelling, or on the way to somewhere, MiFi can build up the high speed Internet access freely. It supports both 4G CAT.4 and IEEE 802.11 b/g/n protocols, to equip the users enjoying the high speed internet surfing experience.


Features:

Ø 4G/3G (No 2G), Multi-mode, Multi-band, Global bands supported;

Ø Impressive brand new ID design;

Ø LTE CAT4 Technology, WIFI 2.4GHz 1*1MIMO Up to 150Mbps;

Ø 2150mAh removable batter;

Ø Usage scenario: Indoor, Outdoor, Home, Office, etc

4G Data Speed Rate

3GPP R9, CAT. 4; Downlink: 150 Mbps / Uplink: 50Mbps

chip platform

ZX297520V3E+RTL8189ES

Frequent band

PTW4101CN: FDD-LTE B1/B3/B5/B8; TDD-LTE B38/B39/B40/B41; WCDMAB1/B5/B8;

PTW4101EA1: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B38/B41; WCDMA B1/B5/B8;

PTW4101EA2: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B40; WCDMA B1/B5/B8;

PTW4101SA1: FDD-LTE B2/B4/B5/B7/B28A/B28B, TDD-LTE B40; WCDMA B2/B5;

PTW4101SA2: FDD-LTE B1/B3/B7/B8/B28A/B28B; TDD B40; WCDMA B1/B8;

PTW4101SA3: FDD-LTE B2/B4/B5/B7/B28A/B28B/B66; TDD-LTE B40; WCDMA B2/B5

Protocol Version

4G: 3GPP R9 Cat4 + 3G: 3GPP R7

LTE Speed

LTE FDD: DL 150 Mbps, UL 50 Mbps

Wi-Fi Standard

802.11b:Up to 11 Mbps
802.11g:Up to 54 Mbps
802.11n:Up to 300 Mbps

Physical interface

1*T flash card1*1.8V&3V 3FF (U)SIM1*Micro USB Port

Battery

2150mAh removable battery

LED

WPS/WIFI, Network,SMS,Battery

Button

POWER,Reset, WPS/WIFI

Characteristic

VPN Pass-Through Support (PPTP, L2TP & IPSec),

Firewall, Local & Remote management

USB I/F

Micro USB

Size

98.1*59*15.1mm

Weight

85~95g
