5G Indoor CPE
Dimension:124mm*70mm*182mm(L×W×H) Weight:
Features
Specification
Application
Video

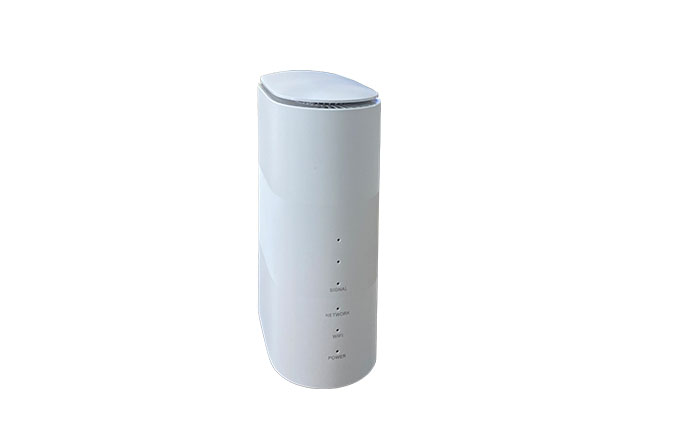

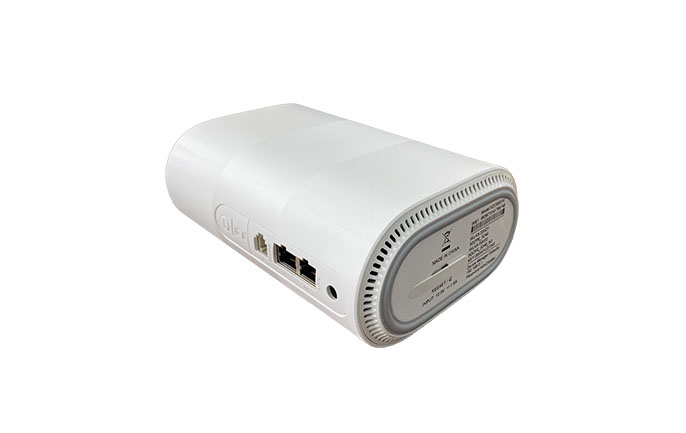

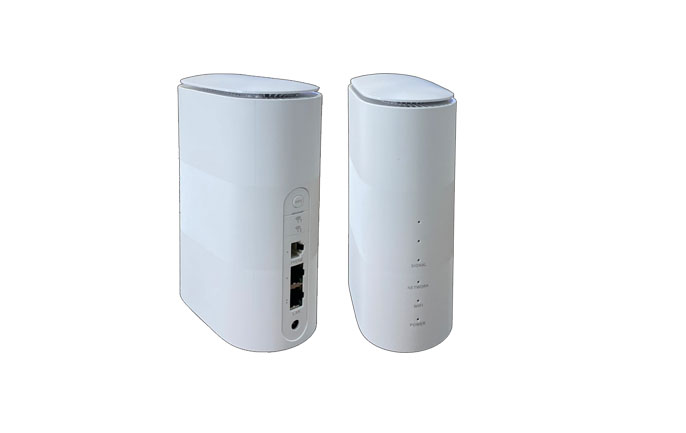

5G Indoor CPE


PTW5362



Product Description

PTW5362 5G CPE is a new wireless router for home or small business userintegrated with WIFI Hotspot, two Ethernet ports(WAN/LAN)  one RJ11 and Web-UI management. It greatly facilitates the connection between people and networked machines, supports 4G/5G wireless and wired Internet at the same time, built-in 5G full-frequency antenna, download speed up to 2.3Gbps (theoretical value), circular layout design, 360-degree signal coverage.

It can also be applied to a wide temperature environment, and high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.

Features:

Ø  Enabling high speed 5G network

Ø  Qualcomm Snapdragon™ X55 and Wi-Fi 11ax technology

Ø  Better antenna design

Ø  “Smart ANT” algorithm allows CPE to choose better signals independently  Ensures 360° high-speed CPE connection, hign gain up tp 9dBi

Ø  Low power consumption

Ø  Special structural design and core parts, keeps power consumption low  Power consumption level is equivalent to 4G CPE

Ø  Specially designed Chimney Venting

Ø  No fan = No extra noise and power

Ø  Core chips are equipped with Thermal phase change materials

Ø  Supports Android+IOS

Ø  Remote Management  DIY Experience

Parental & Guest Wi-Fi Control  Recommend Best Location  Mobile Data Management

Model Name

PTW5362

Network

NSA&SA

5G NR+LTE EN-DC

- Sub6G FDD: n1/2/3/5/7/8/12/20/28/66/71, TDD: n77/78/79/41

4G LTE Global FDD and TDD, 600MHz~3.8GHz, CAT22

MIMO

5G+LTE:

-sub6G DL: 4MIMO

-4G DL: 8layers

LTE: 4MIMO on 5CA(4G only)

Bandwidth (MHz)

100M

Platform

SDX55+QCA6391

Modulation

DL 256QAM, UL 256QAM

LTE+5G EN-DC Peak data rate

3.8Gbps

Wi-Fi

802.11a/b/g/n/ac/ax, 2.4G&5G dual band, 2*2 MIMO, 1.775Gbps,32 users

Antenna Gain

3.5GHz band max gain up to 9dBi(option)

Interface

Led:Power, WiFi, network,Signal*3

RJ11*1 VoLTE, VOIP

Weight

Size

124mm*70mm*182mm(L×W×H)
