Dimension(mm)：112*83*19(L*W*H)
Weight：0.11kg
1GE HGU EPON ONU
PTF1351E
Overview：

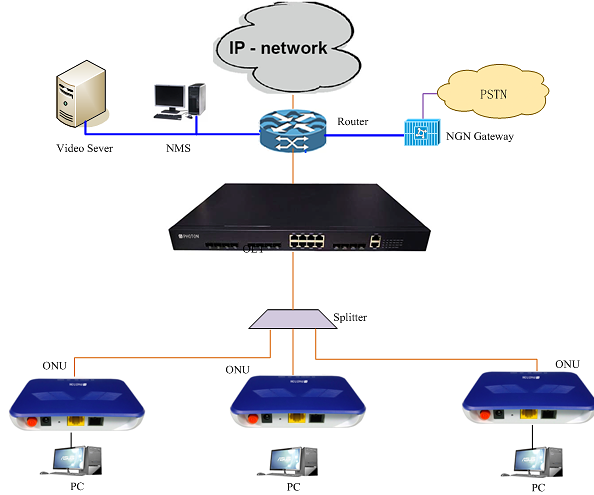

FIBERWAY PTF1351E is 1GE EPON HGU ONU. It is designed to meet the multi-service needs of fixed network operators or cable operators. It is widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature Gigabit EPON technology. it has high stable performance, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical requirement, such as IEEE802.3ah technical standards.
It can also be applied to a wide temperature environment, and also has a firewall function.
Features：

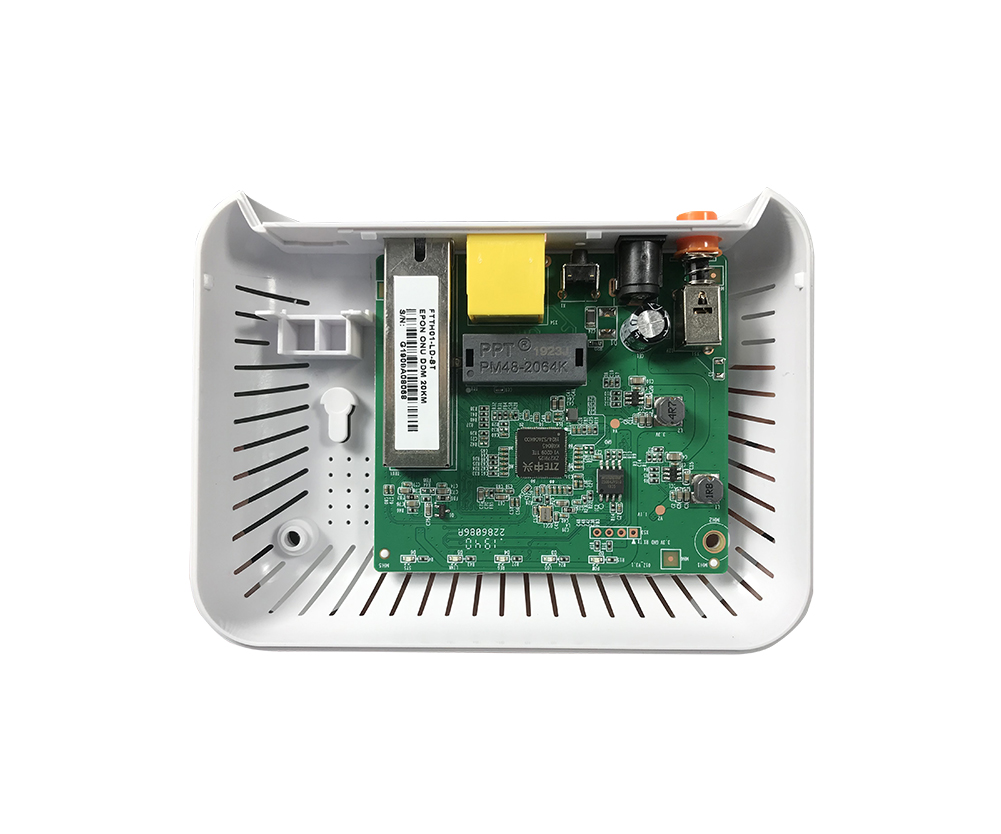

Ø HGU ONU with ZTE chip
Ø Compatible with popular EPON OLT
Ø Bridging and routing modes can be set
Ø Support loop detection, IGMP snooping
Ø 802.1Q VLAN, QoS for priority of service
Ø Support port speed, storm suppression
Ø Support Telnet, CLI, OAM and Web management
Ø Support NAT, Firewall
Ø Support remote software upgrading
|
Items |
Unit |
Specifications |
|
PON |
||
|
PON standard |
|
EPON IEEE802.3ah |
|
Optical interface |
|
SC/PC connector,1 EPON interface(EPON PX20+) Receiving sensitivity: ≤-27dBm Transmitting optical power: 0 ~ +4dBm Transmission distance: 20K |
|
Speed |
Gbps |
EPON: symmetric 1.25Gbps |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Interface |
data |
1GE 10/100/1000MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Indicator |
LED |

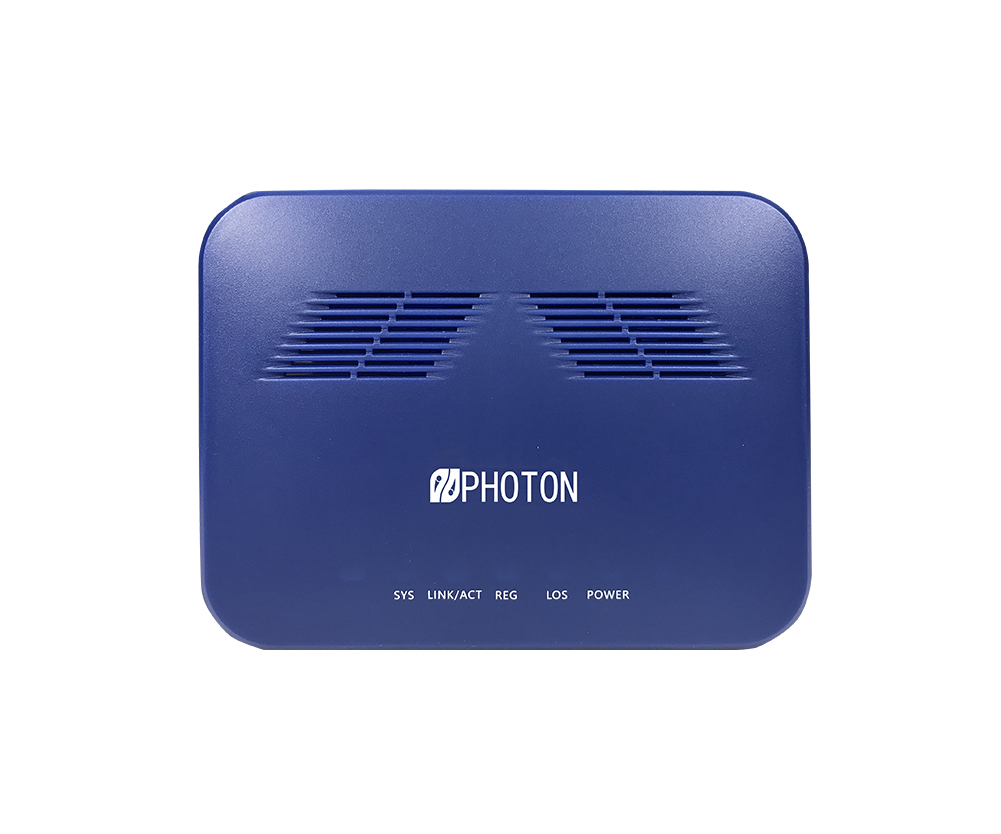

POWER, PON, LOS, LAN |
|
Operating condition |
℃ |
Operating temperature: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temperature: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V,0.5A adapter |
|
Power consumption |
W |
≤4 |
|
Dimension |
mm |
112mm×83mm×19mm(L×W×H) |
|
Net weight |
Kg |
0.11 |
Shipping packaging
|
Description |
Quantity |
Weight |
Carton Size |
|
Shipping packaging |
1pc/box |
0.22kg/box |
178*154*23mm |
|
40pc/ctn |
9.3kg/ctn |
435*280*405mm |
