POF/POE WiFi6 XPON ONU
PTF2511XF
Product Description:
The PTF2511XF PoF XPON ONU (PoF+PoE optional) is designed for different FTTH solutions.
Powered by the latest WiFi6 technology, it supports 160MHz bandwidthand delivers dual-band wireless speeds of up to 3000Mbps. It provides 1 PoF EPON/GPON fiber access port, which can power the ONU through fiber, providing a quick and easy solution for environments with inconvenient power supply. It can also be powered by a 12DC power adapter. The PoE function is optional, and the network port can transmit data and power the user-side device at the same time. The PON interface complies with the IEEE802.3ah/ITU-T G.984 international standard, the YD/T 1475-2006 Ministry of Industry and Information Technology standard and the CTC 3.0 telecommunications standard. It is designed to be small in size and equipped with 1 Gigabit Ethernet interface, providing high-speed fiber access, simple and convenient to use, and providing data service access for telecommunications-grade FTTH applications..
Features:

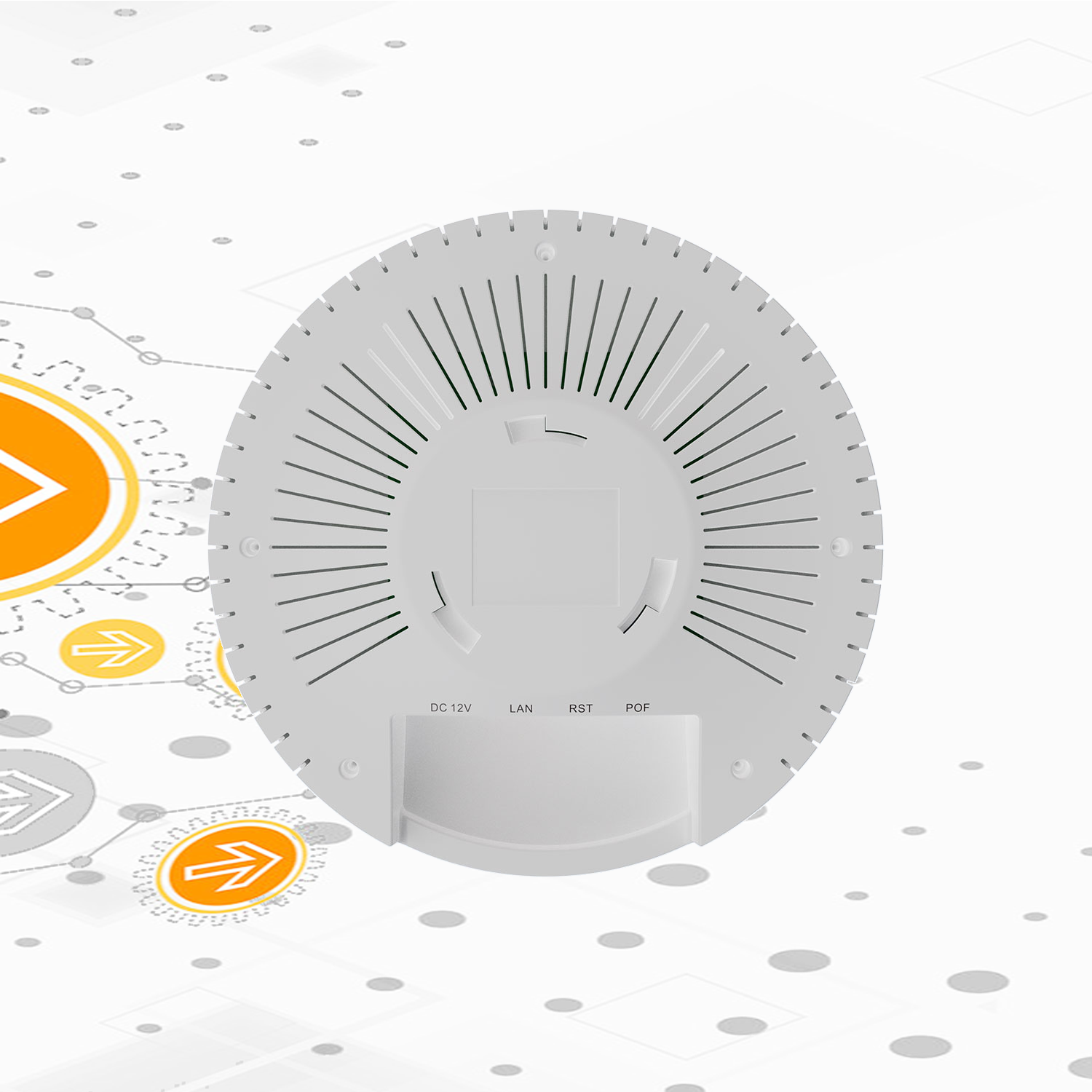

Ø Photoelectric composite PoF optical interface solves the problem of inconvenient power supply
Ø PoE function is optional, which can power the terminal device through the twisted Pair cable
Ø Powered by the latest WiFi6 technology, it supports 160MHz bandwidthand delivers dual-band wireless speeds of up to 3000Mbps.
Ø Support OAM, CLI and WEB configuration management, support Telnet, support OLT remote and WEB software upgrade

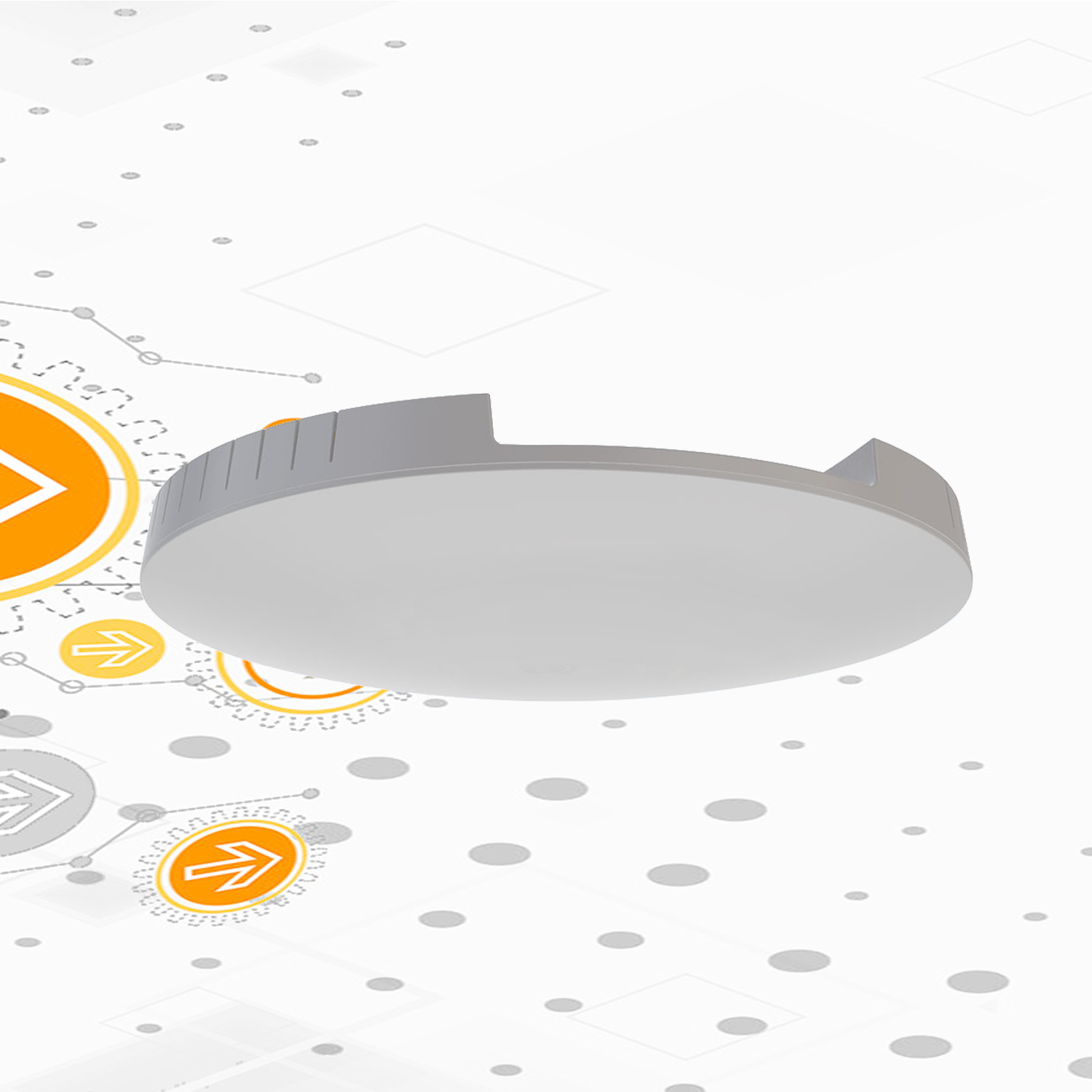

Ø Ceiling Mount, Compact and Elegant, it blends seamlessly into anysetting, saving space whilemaintaining a stylish appearance.
|
Description |
Unit |
Specifications |
|
|
PON standard |
|
EPON IEEE802.3ah, GPON ITU-T G.984.x |
|
|
Optical interface |
|
1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM PoF function: Power supply range: DC 14~60V; |
|
|
Speed |
Gbps |
GPON：Upstream1.25Gbps，Downstream2.5Gbps；EPON: Symmetrical 1.25Gbps |
|
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
|
LAN |
data |
1*GE 10/100/1000Mbps Automatic adaptive Ethernet interface, full/half duplex, RJ45 connector PoE function is optional, providing 48VDC output |
|
|
WLAN Interface |
|
l Compliant with IEEE802.11b/g/n/ac/ax l 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz l 2.4GHz: 2*2, 5GHz: 3*3; 5*4dBi Internal antennas l Maximum number of connected devices:64 l WiFi Encryption:WPA/WPA2/WPA3(personal), WPS2.0 l Support MU-MIMO & OFDMA l Support Multiple SSID l Support hidden SSID l Support Mesh |
|
|
Multicast |
|
l IGMP v1/v2/v3, IGMP snooping l IGMP Proxy l MLD v1/v2 snooping l MLD Proxy |
|
|
QOS |
|
|
|
|
L2 |
|
Support 802.1D&802.1ad bridge, 802.1Q VLAN |
|
|
L3/L4 |
|
l Support IPv4, IPv6 and IPv4/IPv6 dual stack l Support DHCP/PPPOE/Static IP l Support Static route,NAT l Support DMZ, ALG,UPnP l Support Virtual Server l Support DNS Client and DNS Proxy l Support DDNS |
|
|
Security |
|
l Support local access control l Support IP/MAC filtering, URL filtering l Support Anti-DoS attack function l Support loop detection l Support Parental control function |
|
|
System Function
|
|
l Support NTP (Network Time Protocol) l Support scheduled device restart l Support Ping and Traceroute diagnosis l Support Iperf speed measurement function l Support WLAN packet capture |
|
|
Operating conditions |
℃ |
-5 ~ +55 |
|
|
Storage conditions |
℃ |
-30 ~ +60 |
|
|
Humidity |
% |
10~90(non-condensing) |
|
|
Power supply |
V |
Input DC5~ 12V,1A |
|
|
Power consumption |
W |
≤12 |
|
|
Dimension (LxWxH) |
mm |
240*240*48(L×W×H) |
|
|
Weight |
Kg |
0.4 |
